6-38 Removal and Replacement
Upper Printer Assembly
This is a general procedure for separating the upper printer and interstage
platform from the lower laminator section.
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove both halves of the
Main Enclosure (page 6-15).

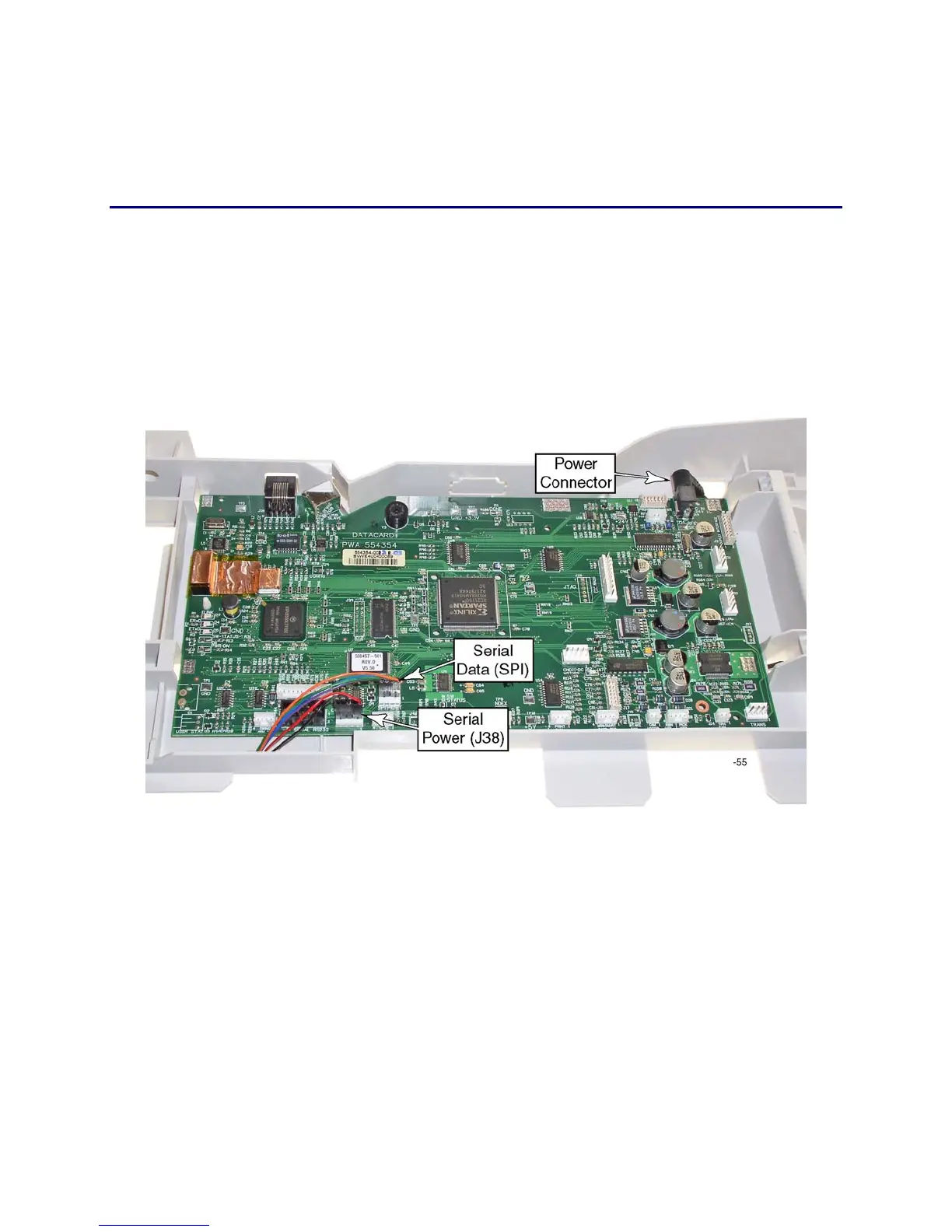

3. Unplug the print assembly’s power supply connector from the main control
board and pull the wire back out of the interstage platform.
4. Disconnect the serial data and serial power connectors from the main control
board and pull the wires back out of the interstage platform.
