6-122 Removal and Replacement
Foil Advance Motors

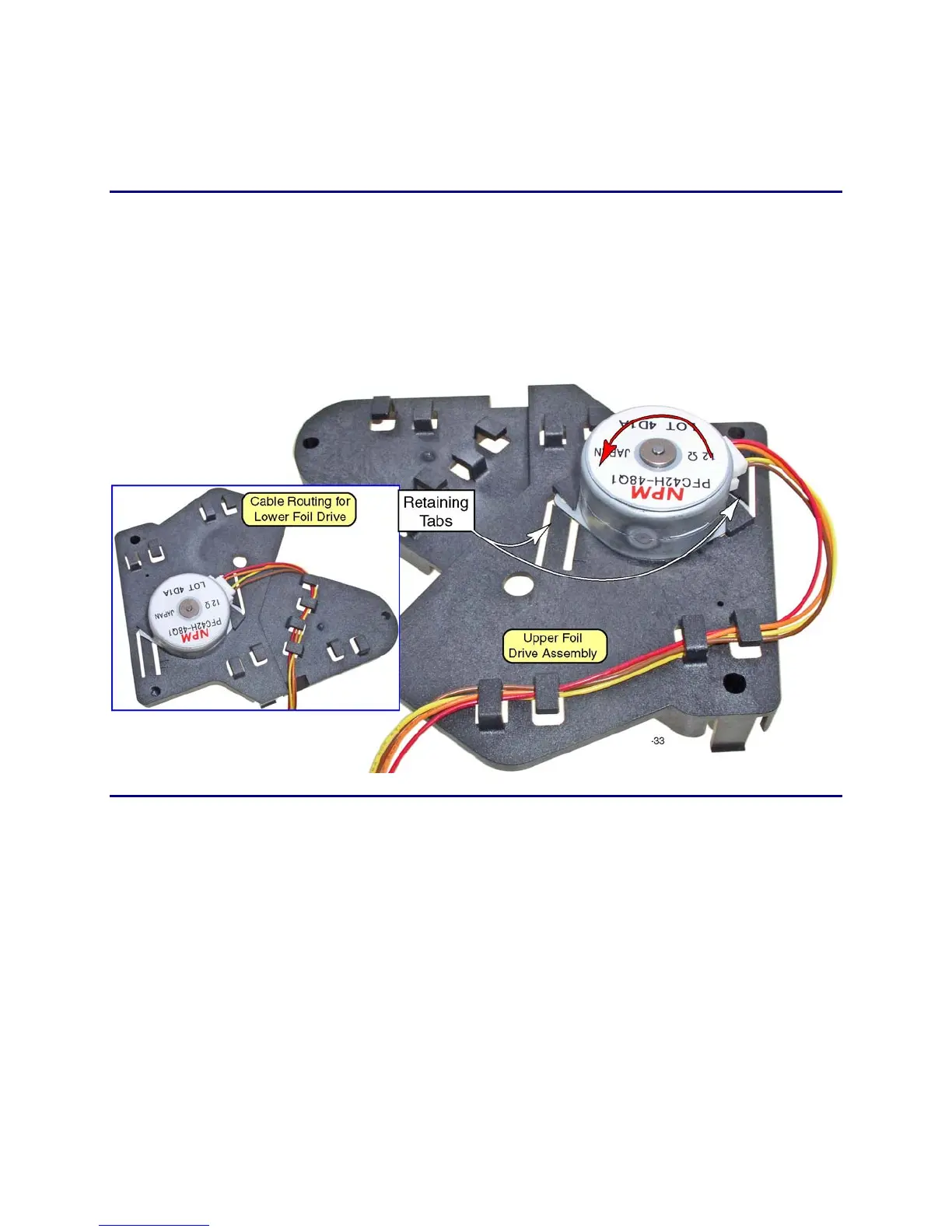

The same procedure is used for both upper and lower motors. The graphic below
shows the different cable routing.
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15).
3. Disconnect the motor from the laminator control board.
4. Press in on the two retaining tabs and rotate the motor counterclockwise to
remove it.
Follow-up Procedure
• Refer to the Laminator Cable Connection Diagram and Laminator Rear Wire
Routing Diagram for replacement details.
• Use the laminator motor tests in Diagnostics to verify the motor is functioning
properly.
• Print several test cards.
