CP80 and CP80 Plus Service Manual 6-121

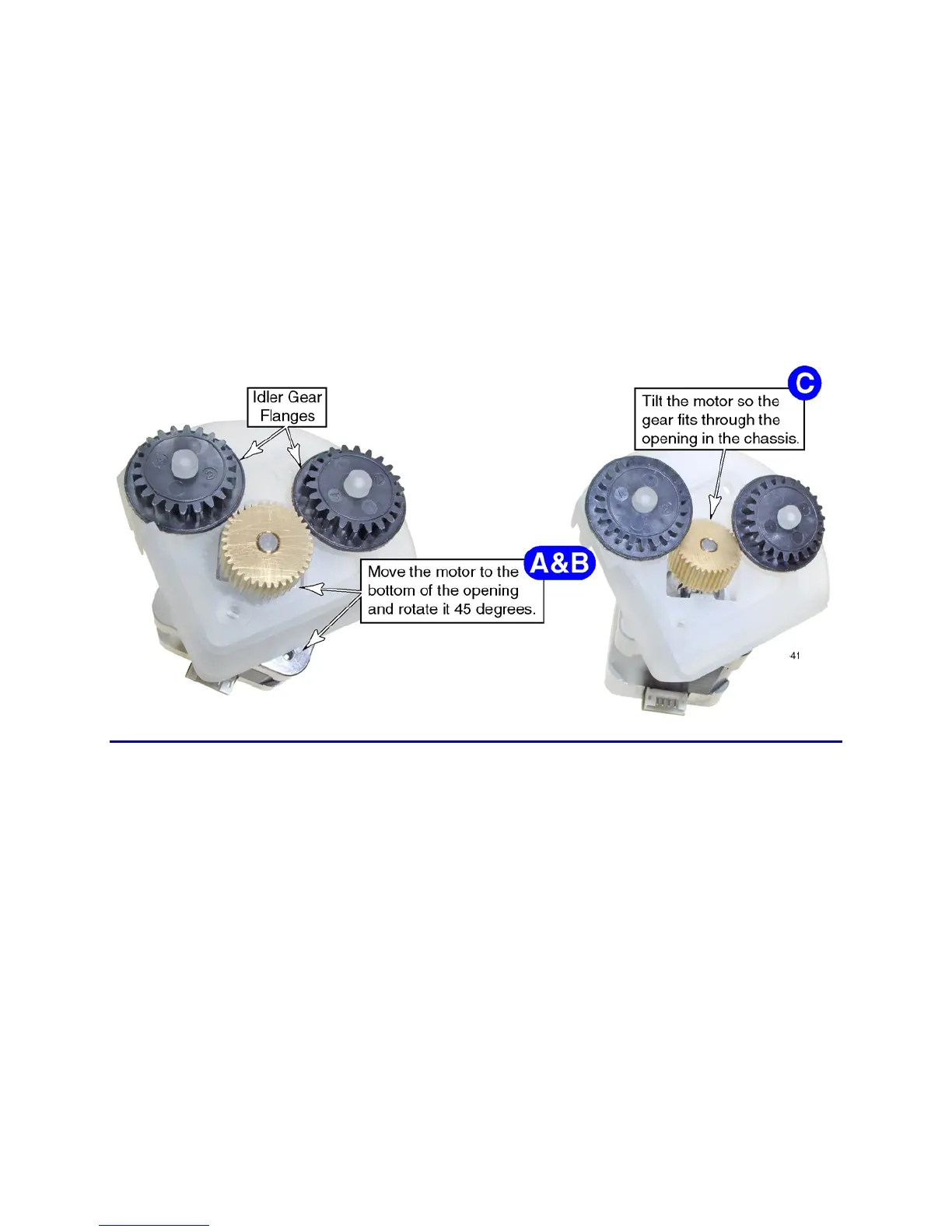

 The idler gears have flanges that lock behind the transport roller gears. These
keep the idler gears in place. However, this also prevents the motor from
being removed straight out of the opening.
7. To remove the motor:
A. Lower the motor down until the shaft touches the bottom of the cutout in
the chassis.
B. Rotate the motor 45 degrees so the flat side of the motor is lined up with
the corner of the chassis.
C. Tilt the motor downward so the top of the drive gear clears the cutout in
the chassis, and remove the motor.
Follow-up Procedure
• Refer to the Laminator Cable Connection Diagram and Laminator Rear Wire
Routing Diagram for replacement details.
• Use the laminator motor tests in Diagnostics to verify the motor is functioning
properly.
• Print several test cards.
