CP80 and CP80 Plus Service Manual 3-9
Mechanical Inspection
Inspect the following components and replace as needed.
1. Check the transport rollers to make sure they are not nicked or gouged.
2. Check springs to verify they are in position and not damaged.
3. Inspect all of the gears in the transport system for damage.
4. Inspect the foil cartridge.

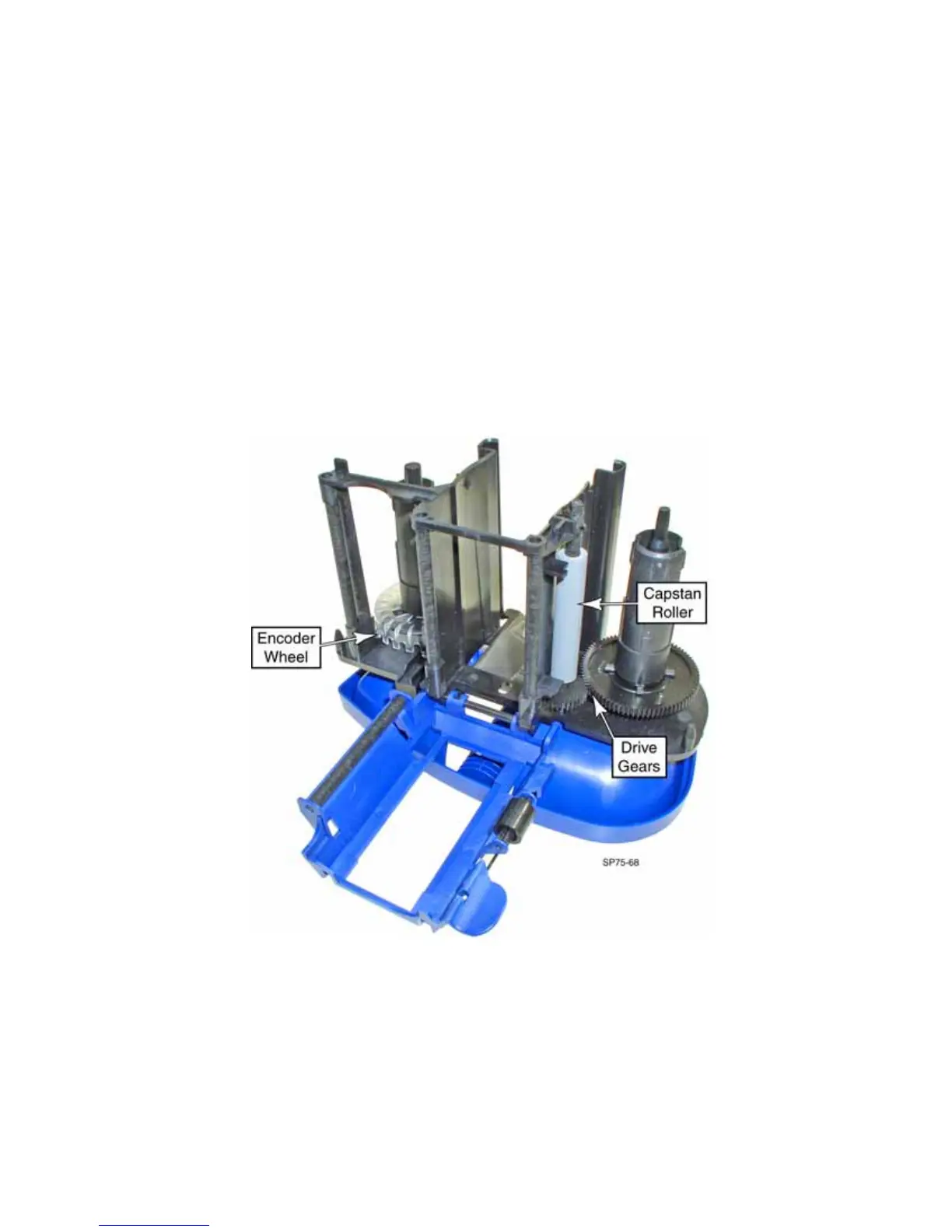

• Inspect the spindle and capstan drive gears for wear and missing teeth.
• Inspect the encoder wheel for missing teeth.
• Check the spindles for proper movement and to be sure the clutches are
providing a slight drag.
• Inspect the foil path for nicks or burrs that could damage the foil.
5. Reassemble the printer.
6. Wipe the exterior of the printer with a cloth dampened with a non-abrasive,
general purpose cleaning solution. Let the printer dry before connecting
power.
7. Inspect all sensor to make sure they are properly seated in their mounting
locations.
