DataCard CP80 Plus

CP80 and CP80 Plus Service Manual 2-27

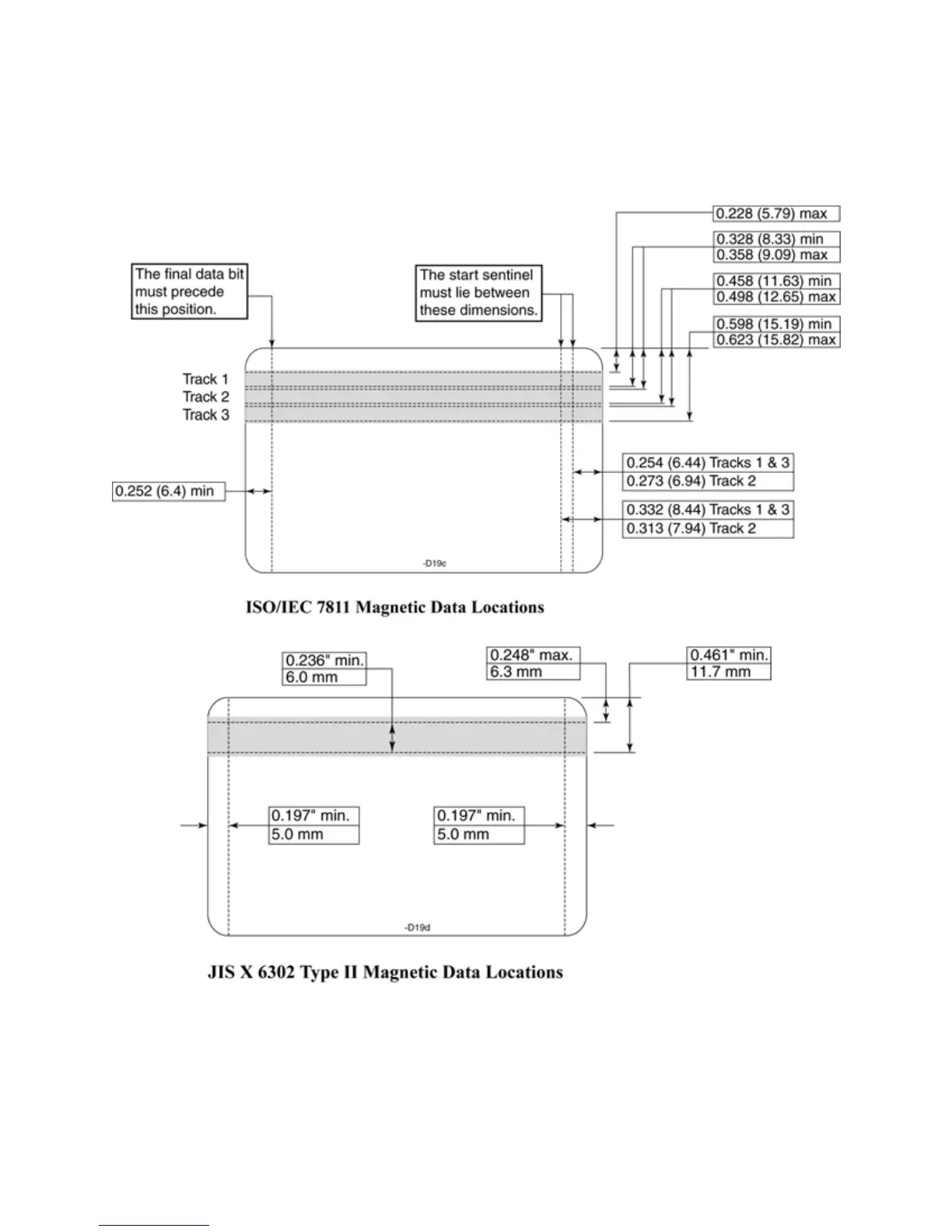

Data Track Locations
The positions where data can be recorded on a 3-track stripe are described in the
graphic below. This applies to all three of the aforementioned standards, but
does not apply to a JIS Type II card.
