CP80 and CP80 Plus Service Manual 6-107
Rear Cooling Fan
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15).
3. Remove the
Upper Printer Assembly (page 6-38).
4. Simultaneously press outward on the two retaining tabs and lift the fan out.
Replacement Notes

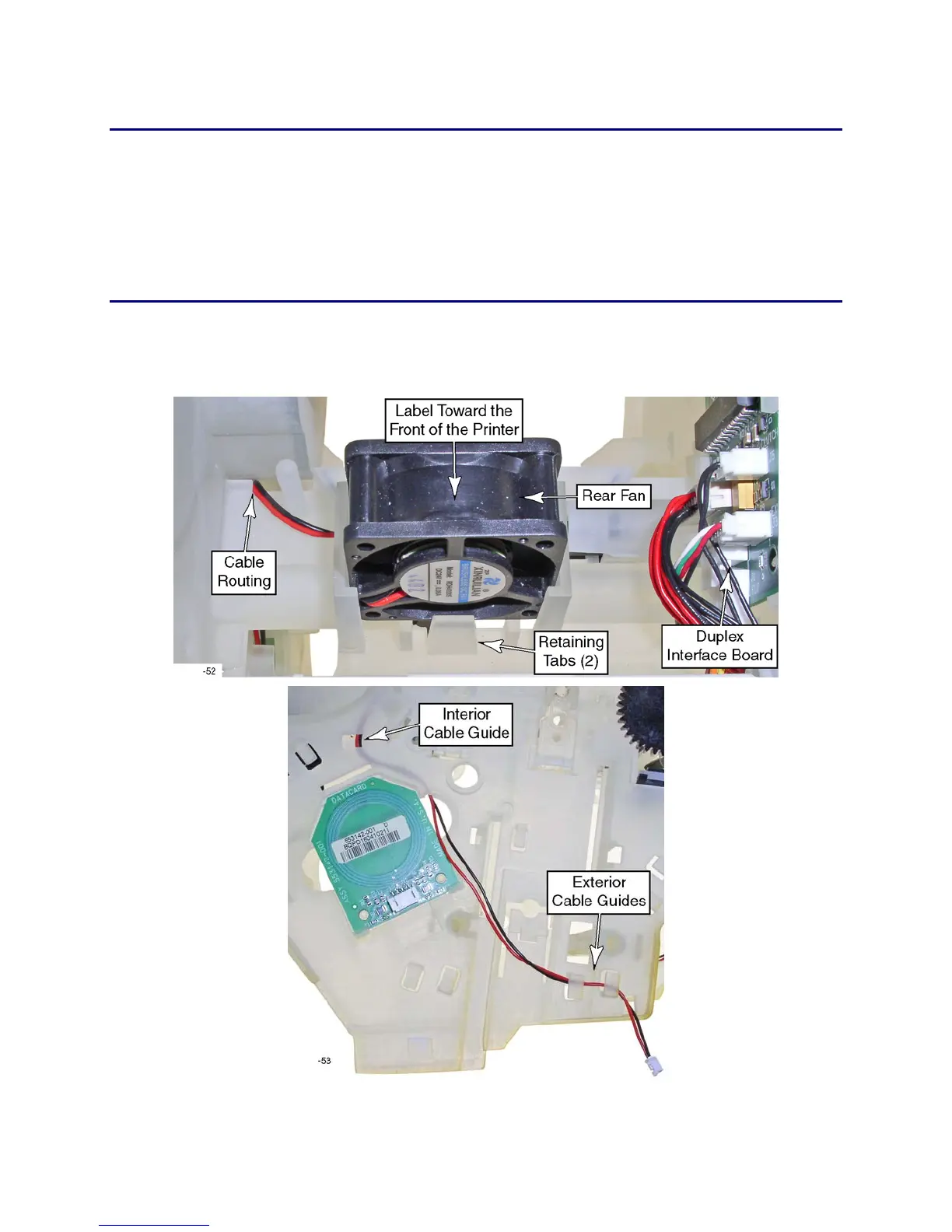

• Route the wires according to the two pictures below.
• Use the Laminator Motor Tests in Diagnostics to test the fan.
