CP80 and CP80 Plus Service Manual 6-15
Main Enclosure
Removal Procedure
1. Unplug all cables from the printer, and remove the laminate cartridges.
2. Remove the
Swingarm Cover (page 6-13).

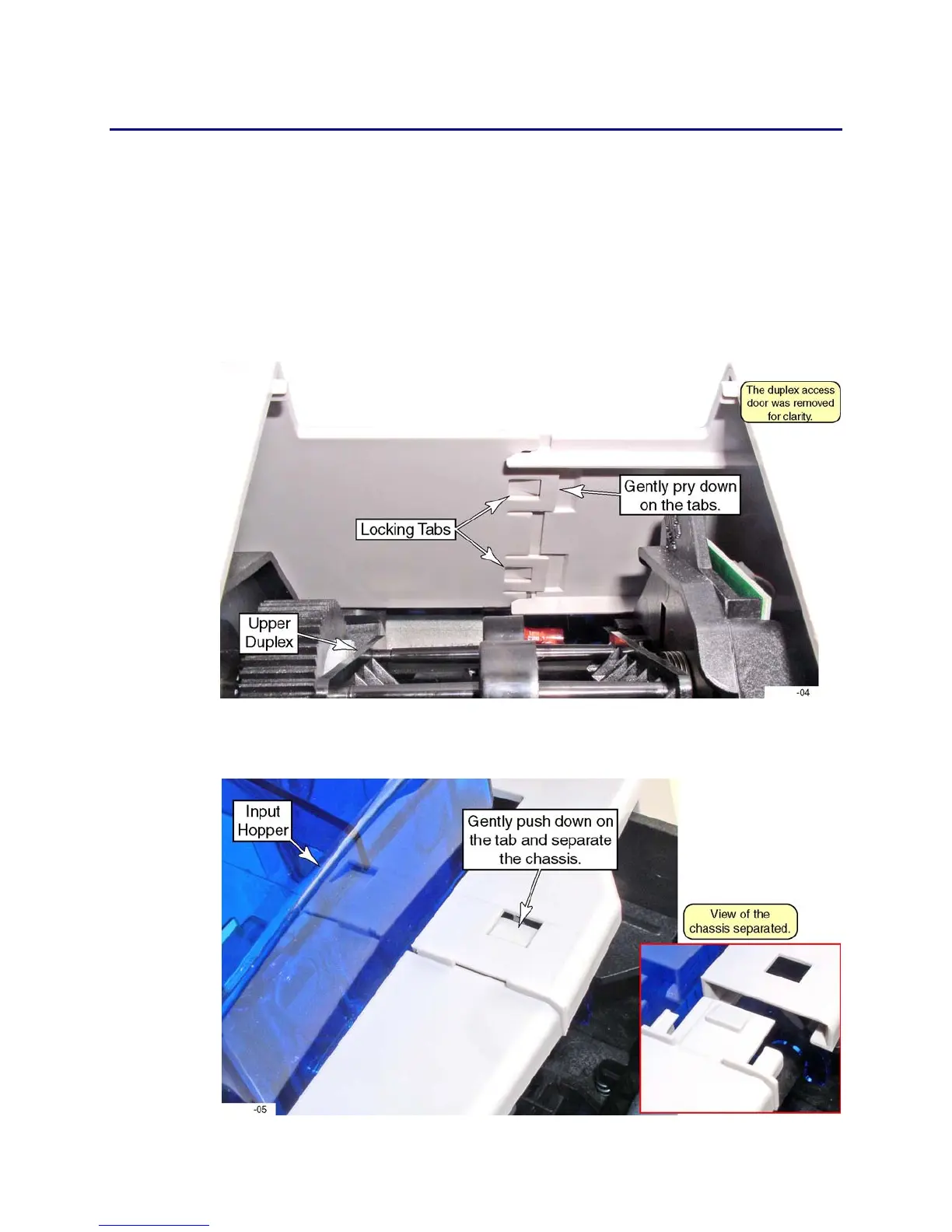

3. Release the rear locking tabs:
A. Open the duplex access door and locate the two locking tabs just above
the upper duplex assembly.
B. Gently pry down on the two locking tabs and separate the two halves of
the enclosure slightly.
4. Press down on the upper locking tab (located behind the input hopper) and
separate the two halves of the chassis.
