CP80 and CP80 Plus Service Manual 6-81

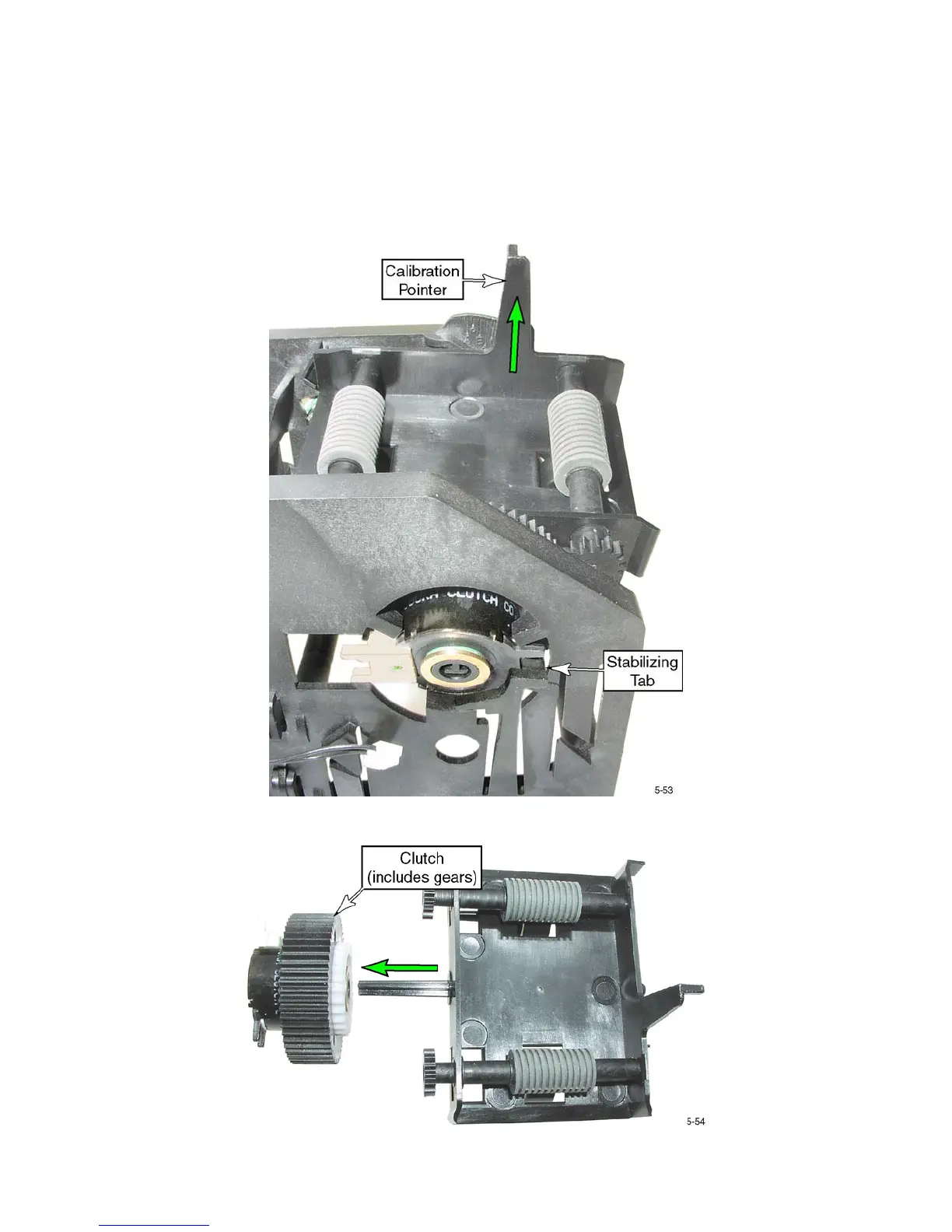

8. Rotate the flipper until the calibration pointer is pointing up.
9. Pull the flipper assembly toward the clutch end until the pivot pin is free
from the chassis. (The stabilizing tab, which was previously constrained by
the motor, will bend as necessary.)
10. Tilt the flipper assembly up and remove the whole assembly. Take care not to
break the stabilizing tab. Pull it away from the clutch as needed.
11. Slide the magnetic clutch off the center pin of the flipper.
