6-104 Removal and Replacement

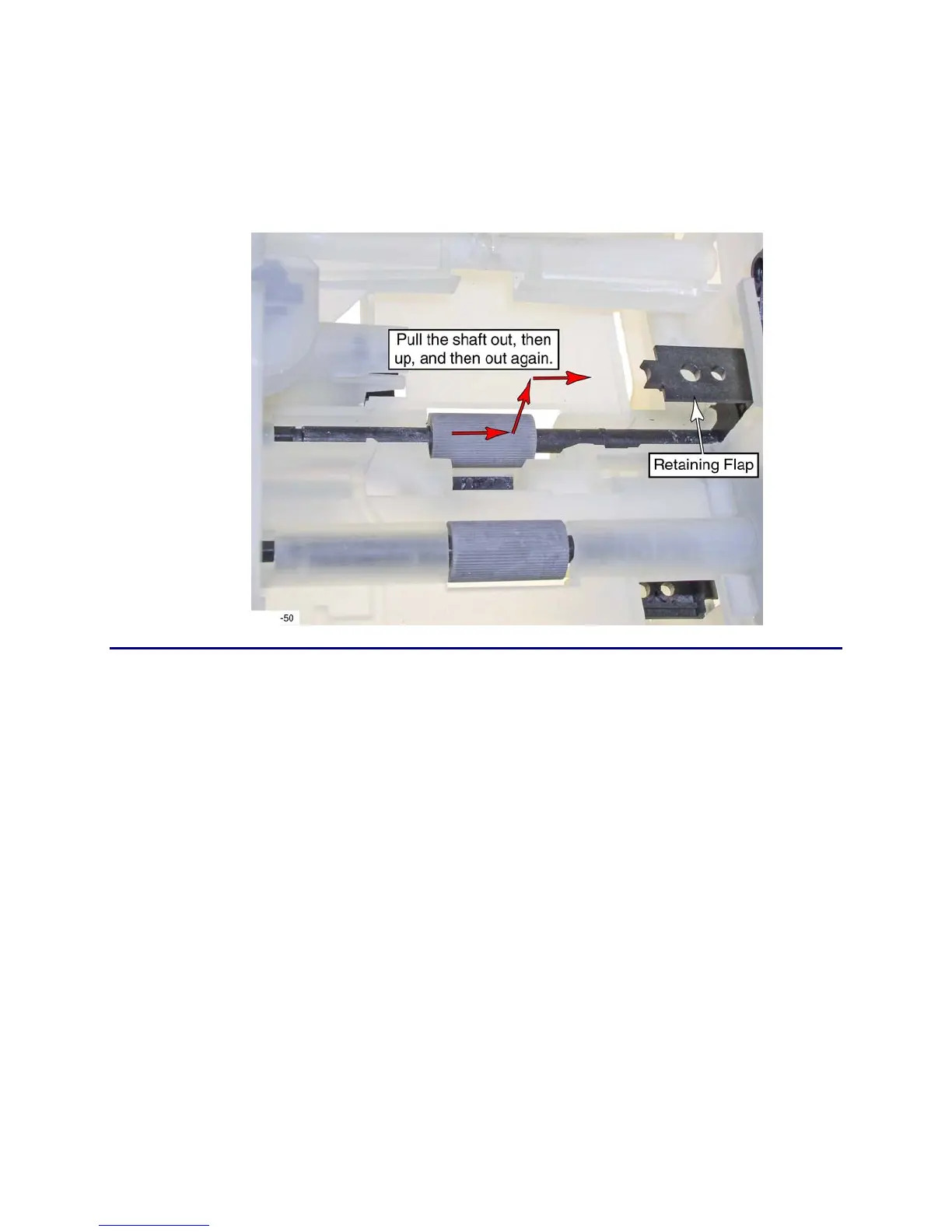

6. Remove the intermediate drive roller:
A. Open the retaining flap above the roller.
B. Pull outward on the drive gear so it disengages from the other transport
gears.
C. Lift the gear-end of the roller, and pull it out the side of the chassis.
Follow-up Procedure
• Refer to the Laminator Cable Connection Diagram and Laminator Rear Wire
Routing Diagram for replacement details.
• Print several laminate test cards.
To Next Page
