DataCard CP80 Plus

CP80 and CP80 Plus Service Manual 6-127
Replacement Notes

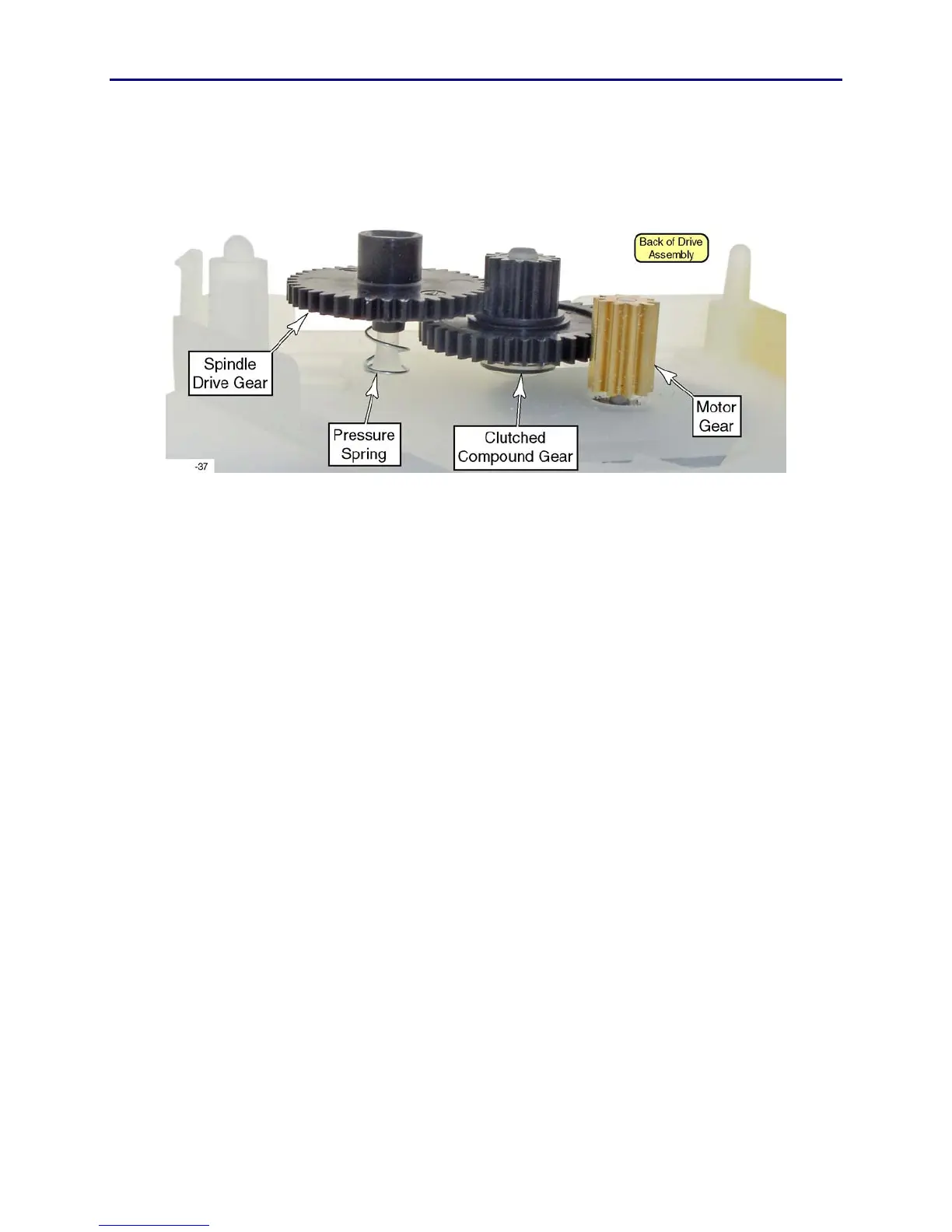

• The plastic gears are not retained on their shafts. Make sure the gear train is
replaced according to the image below.
• Re-route the wires according to the image above and the Laminator Rear Wire
Routing Diagram.
