6-130 Removal and Replacement

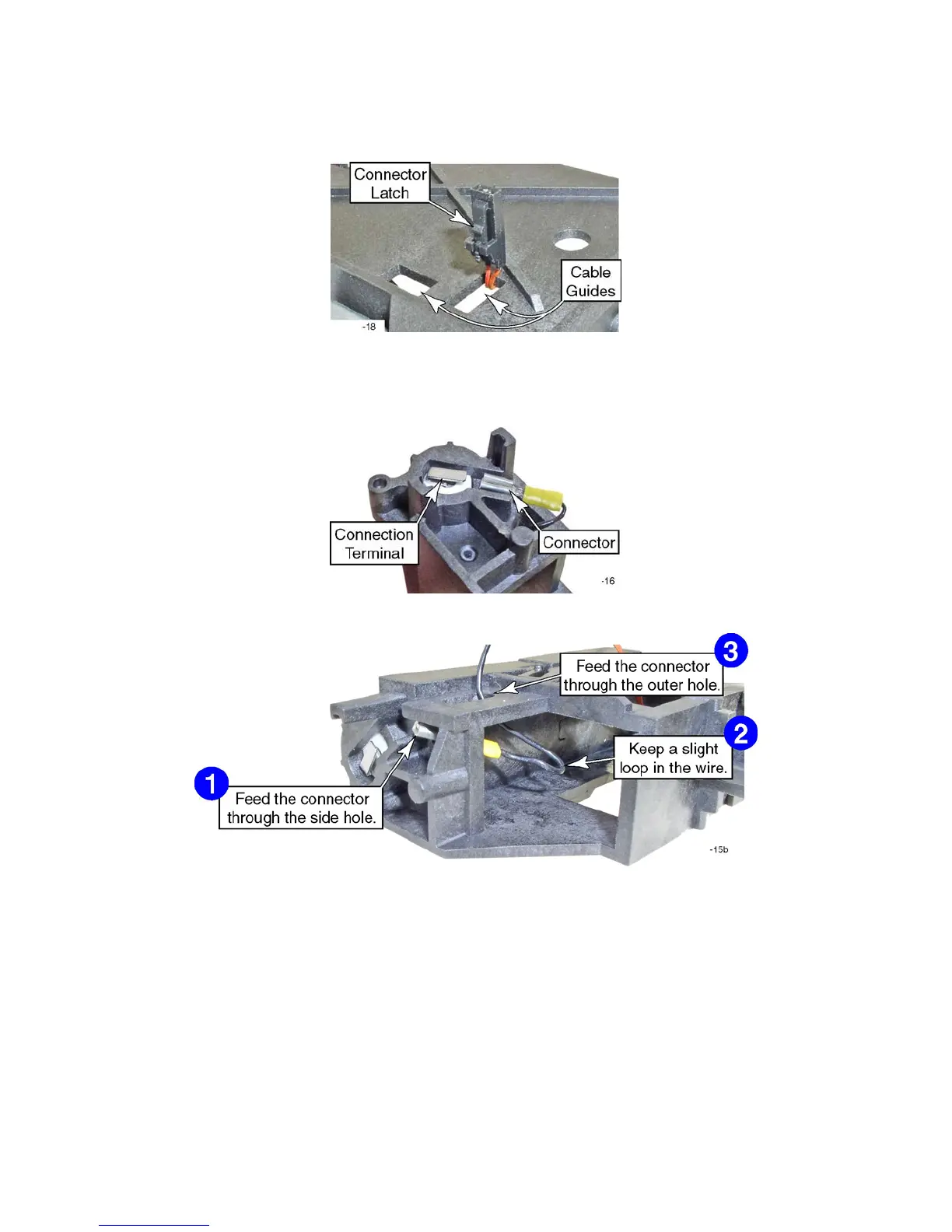

6. Free the heater and thermocouple wires from the heater assembly frame. In
order to fit the connectors through the cable guides, you need to rotate the
connector so the connector latch is in-line with the opening as shown.
7. Remove the heater wires. (Hint: If you temporarily leave one of the two wires
in place, the heater will not fall loose in step
8.)
A. Slide the connectors off the heater’s terminals.
B. Retract the connector into the center area, and then out the side.
