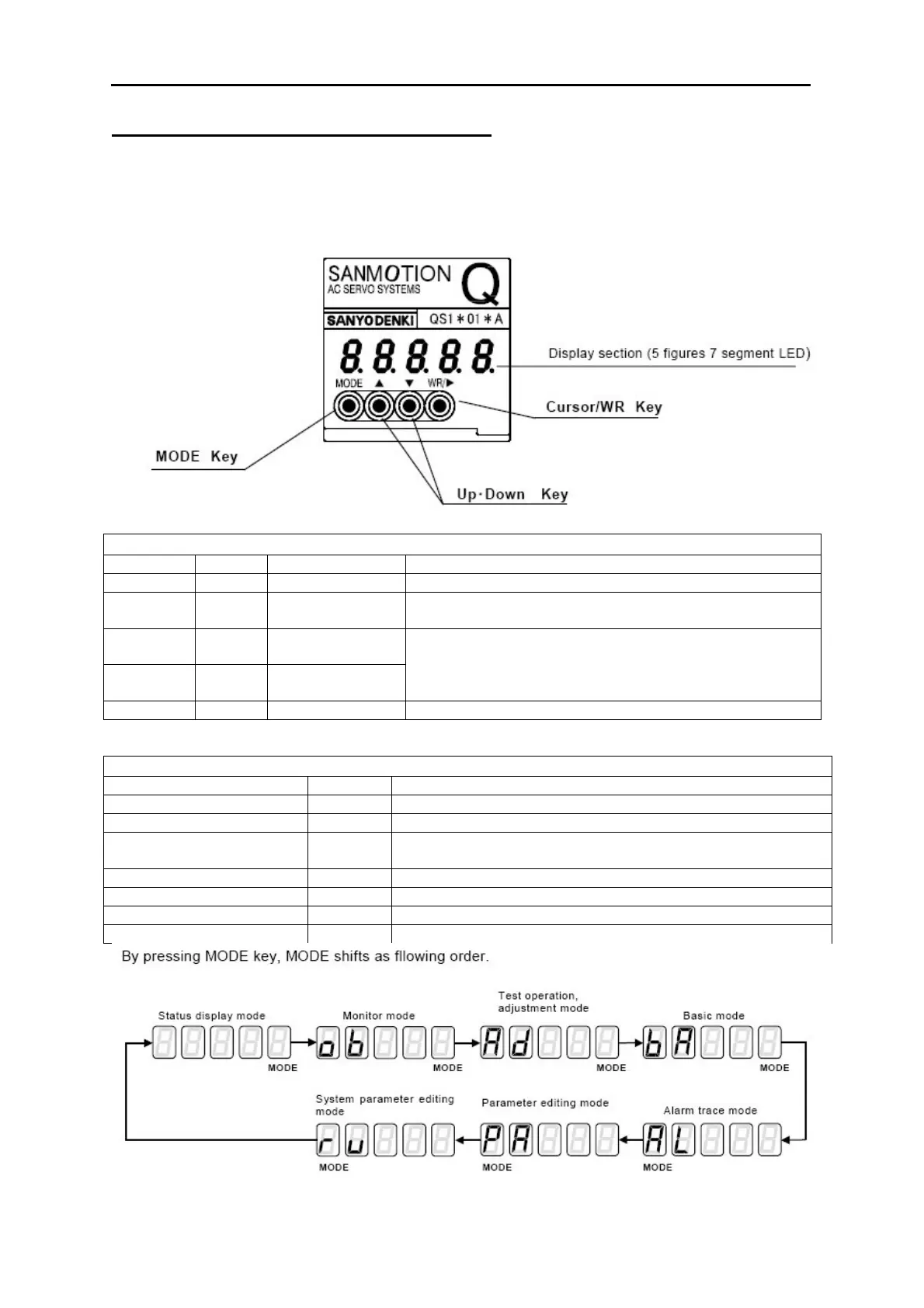

Digital Operator (Parameter settings)
This section explains the basic operation of the digital operator. In Q series parameter change，monitoring of
velocity and current，alarm trace，test operation, and adjustment of servo amplifier are enabled by using the digital
operator built-in main body.
Function of input key
Input key Display Input time Function
WR WR 1 second or more Decide after selection and write the editing data
Cursor ► Within 1 second
Change the cursor location. Every one press, move to
selectable figure.
Down ▼ Within 1 second
Up ▲ Within 1 second
Correspond to cursor location and the value change every
one press.
When pressing 1 second or more, the value changes by
scrolling.
Mode Mode Within 1 second Mode change every one push.
Function of digital operator
Mode Display Function
Status Display - Display the status of servo amplifier.
Monitor ob Display various monitors on the screen.
Test operation, Adjustment Ad
Allow test operation and adjustment of amplifier such as JOG
operation.
Basic bA Set 16 kinds of user parameters.
Alarm trace AL Display the last seven and current alarms, and CPU version.
Parameter editing PA Set user parameters. (Group0 to Group9)
System parameter editing ru Set system parameters.
