Datakom D-100 MK2 - Ethernet Port (Plug-In Module)

D-100 MK2 User Manual Firmware V-6.3
K96D01-EN - 26 -
STANDARD ETHERNET CABLE
Description:
IEEE802.3 compliant, 10/100 Base-TX RJ45 ethernet port with
indicating leds
Data rate:
10/100 Mbits/s, auto detecting
Connector:
RJ45
Cable type:
CAT5 or CAT6
Isolation:
1500 VAC, 1 minute
Max distance:
100m with CAT5 or CAT6 cable
Functionality:
Web Client, Modbus TCP_IP
LED FUNCTIONS:
GREEN: This led turns on when the ethernet link is established (connector inserted)
YELLOW: This led blinks when data transfer occurs inwards or outwards. Periodic blinking will witness
data flow.

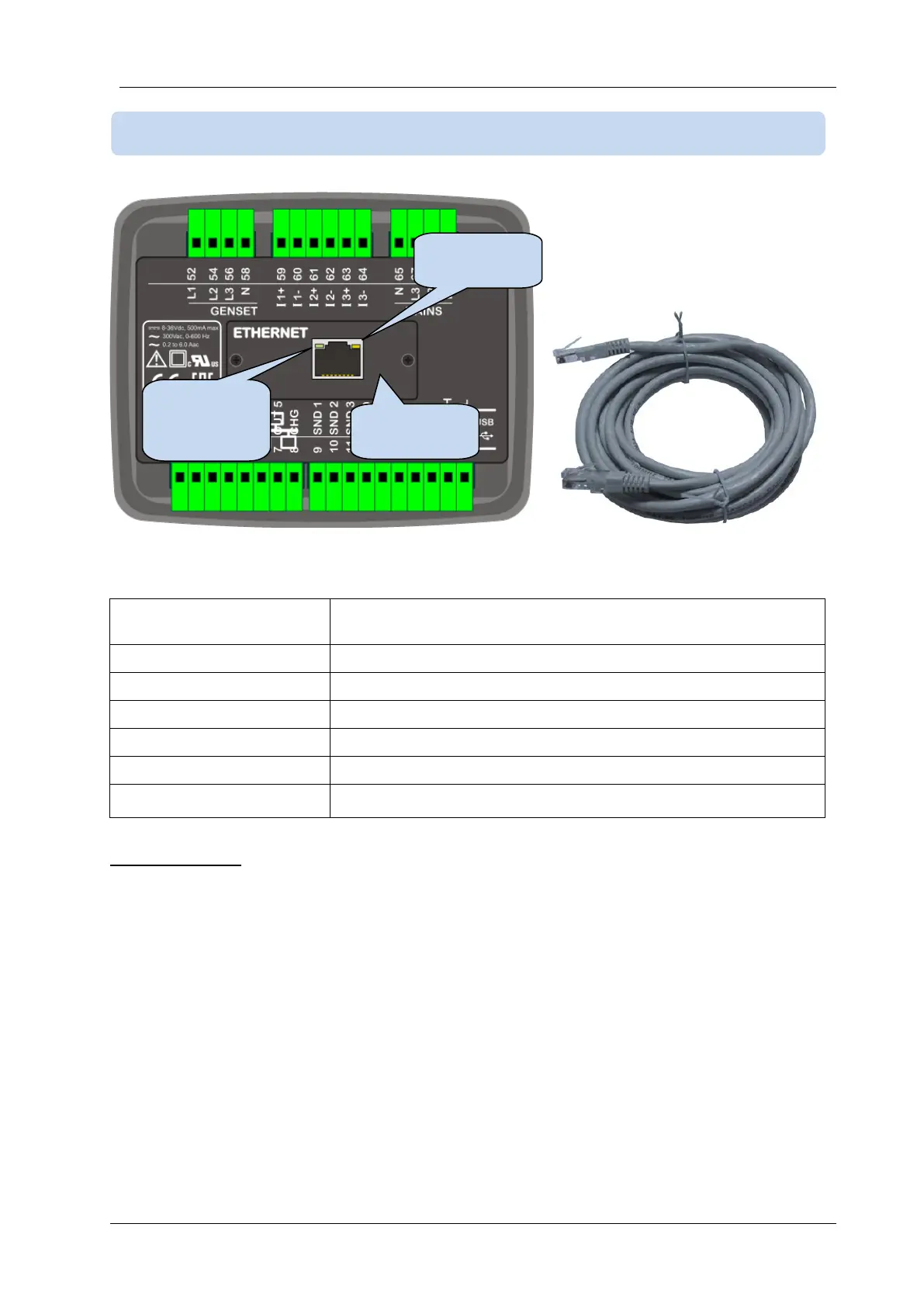

3.16. ETHERNET PORT (PLUG-IN MODULE)
Ethernet
Slot
Link
Established
led
Data Flow
led
