D-100 MK2 User Manual Firmware V-6.3
K96D01-EN - 44 -
When the engine hours OR the time limit is over, the SERVICE REQUEST led (red) will start to flash and the
service request output function will be active. The service request can also create a fault condition of any
level following parameter setting.
The service request output function may be assigned to any digital output using Relay Definition
program parameters. Also relays on an extension module may be assigned to this function.
To turn off the SERVICE REQUEST led, and reset the service
period, press together the ALARM MUTE and LAMP TEST keys
for 5 seconds.

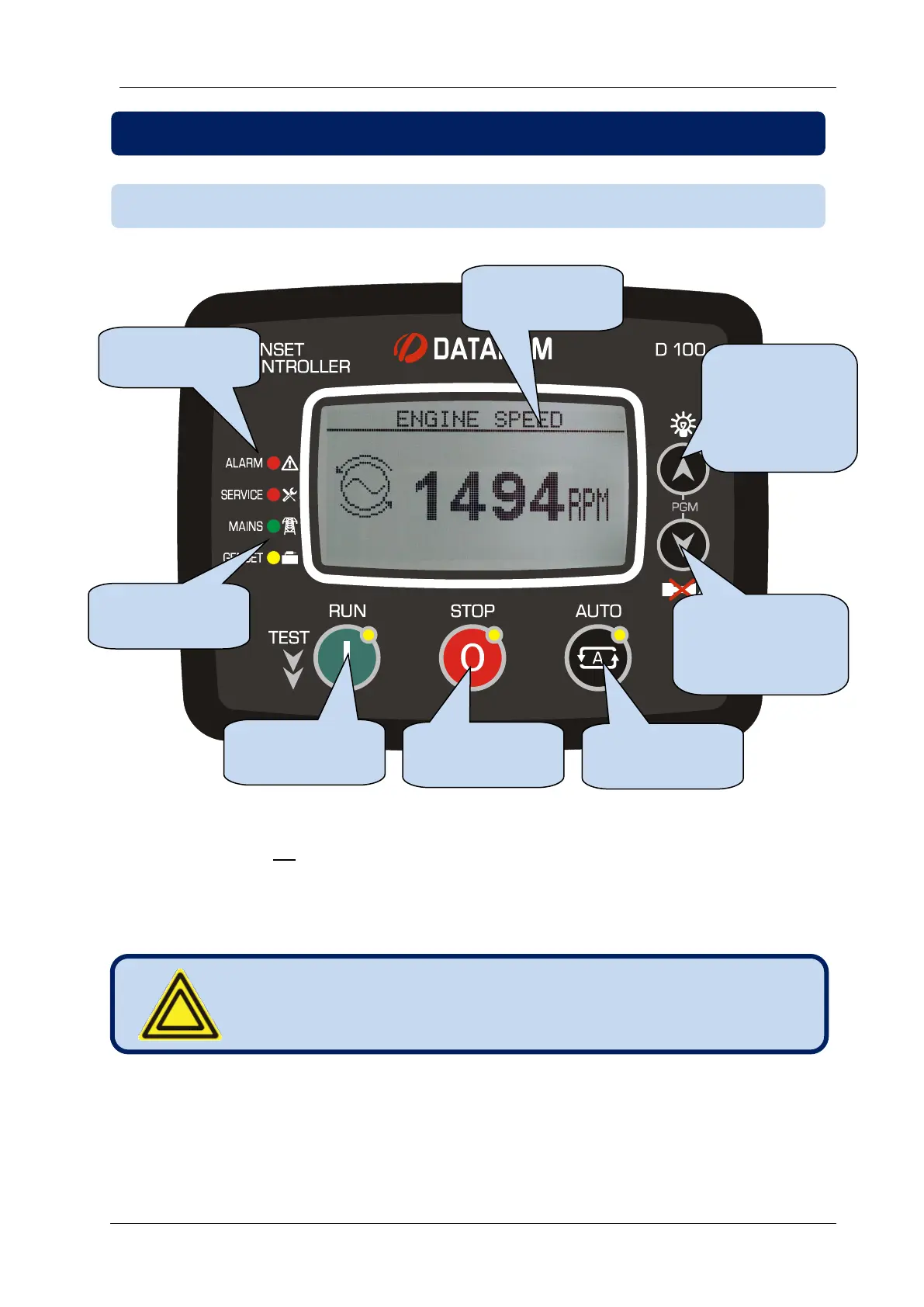

9.1. FRONT PANEL FUNCTIONALITY
9. DESCRIPTION OF CONTROLS
Fault condition
indicators
RUN mode
button
AUTO mode
button
STOP mode
button
Graphic LCD
screen
Next screen in
the same group.
ALARM Mute
Next screen
group.
LAMP TEST if
held pressed
Mimic Diagram
(sysem status)
