Enter/Exit Programming Mode
Product Reference Guide
139

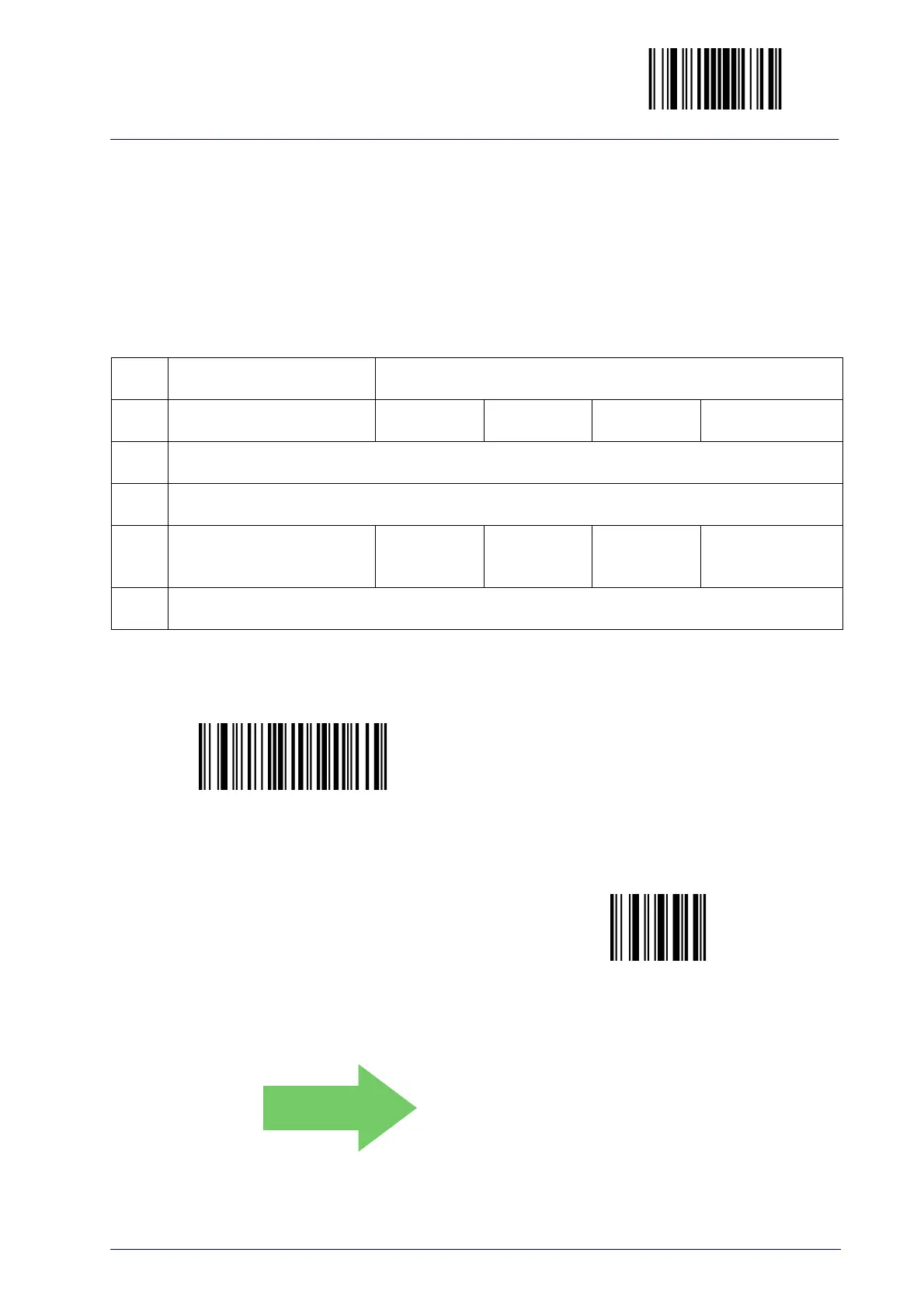

Standard 2 of 5 Set Length 1
This feature specifies one of the bar code lengths for Standard 2 of 5 Length
Control. Length 1 is the minimum label length if in Variable Length Mode, or
the first fixed length if in Fixed Length Mode. Length includes the bar code’s
check and data characters. The length can be
set from 1 to 50 characters.
Table 10 provides some examples for setting Length 1. See page 297 if you
want detailed instructions on setting this feature.
Table 10. Standard 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
01 Character 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT STANDARD 2 OF 5 LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Standard 2 of 5 Length 1 Setting
To configure this feature, scan the ENTER/EXIT bar
code above, then the bar code at left followed by dig-
its from the Alphanumeric characters in
Appendix
D, Keypad
representing your desired character(s).
End by scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not
save the entry string. You can then start
again at the beginning.
CANCEL
08 = Length 1 is 8 Characters
To Next Page
