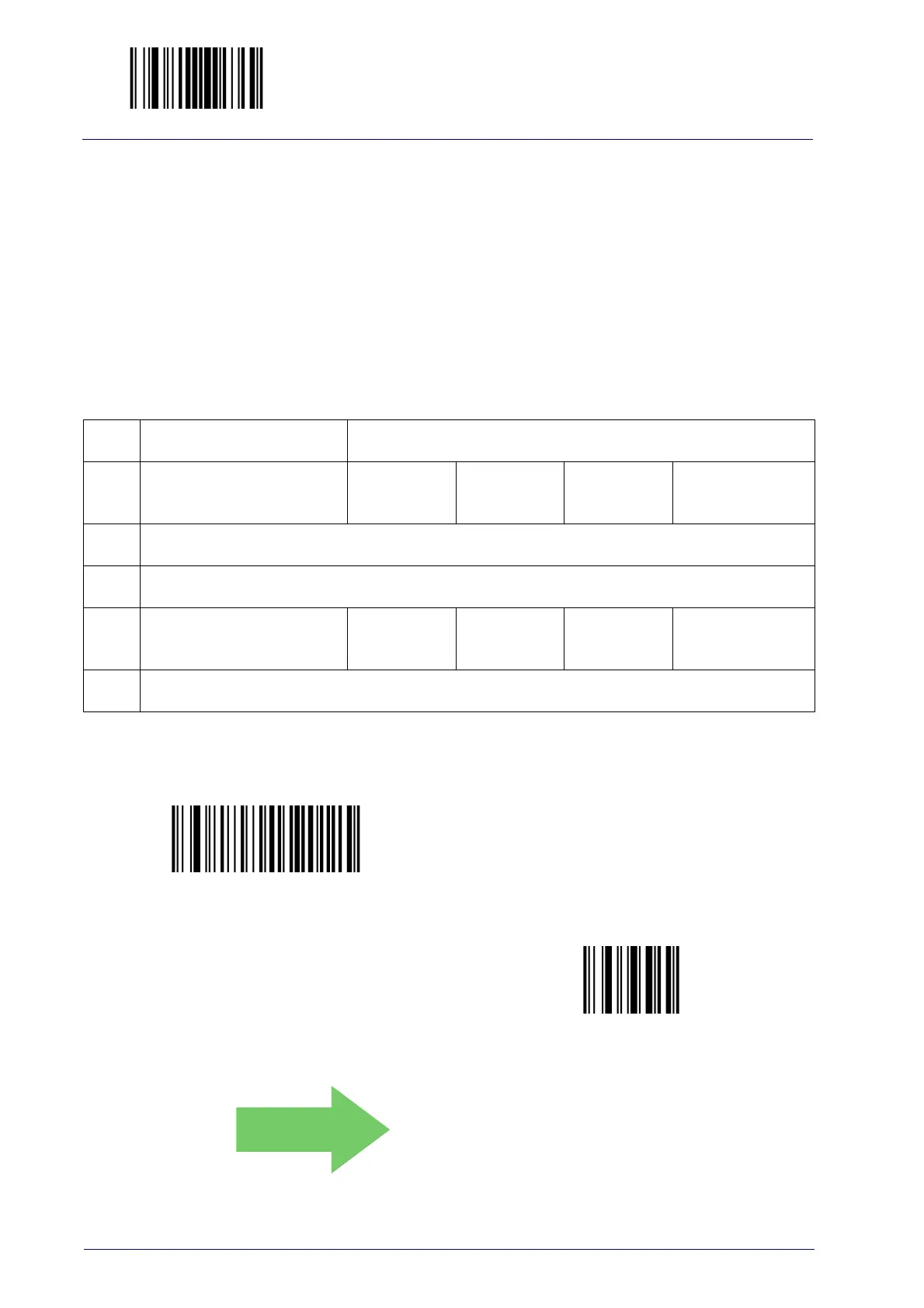

Enter/Exit Programming Mode
164
PowerScan™ PD9130/PBT9100/PM9100
Code 11 Set Length 2
This feature specifies one of the bar code lengths for Code 11 Length Con-
trol. Length 2 is the maximum label length if in Variable Length Mode, or the
second fixed length if in Fixed Length Mode. Length includes the bar code’s
check and data characters.
The length can be set from 2 to 50 char
acters. A setting of 0 specifies to
ignore this length (only one fixed length).
Table 17 provides examples for setting Length 2. See page 298 for detailed
instructions on setting this feature.
Table 17. Code 11 Length 2 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (pad with
leading zeroes)
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 11 LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ and 0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Code 11 Length 2 Setting
To configure this feature, scan the ENTER/EXIT bar
code above, then the bar code at left followed by
digits from the Alphanumeric characters in
Appendix D, Keypad representing your desired
character(s). End by scanning the ENTER/EXIT bar
c
ode again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
