Attaching the Metal Plate to Base
Alternatively, the mount can be attached first to the base, then both can be
mounted to a wall as described above.

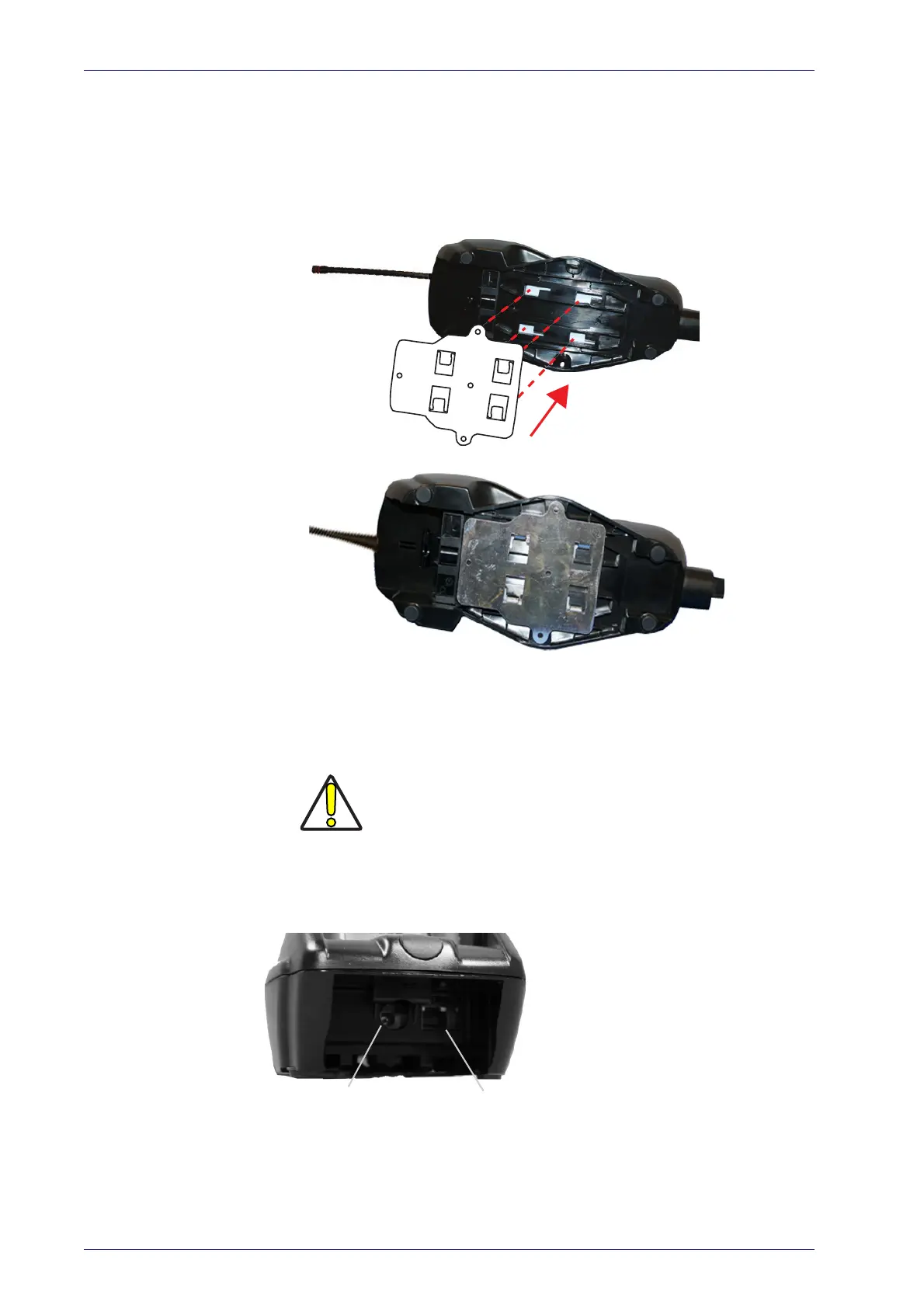

Figure 5. Attaching Mounting Plate to Base
Base with Mount attached
System Connections
CAUTION
Connections should always be made with power off!
The BC9xx0 cradle provides a multi-interface connector and a power supply
connector as shown:
Power Supply
Multi-Interface Connector
