Technical Specifications
320
PowerScan™ PD9130/PBT9100/PM9100

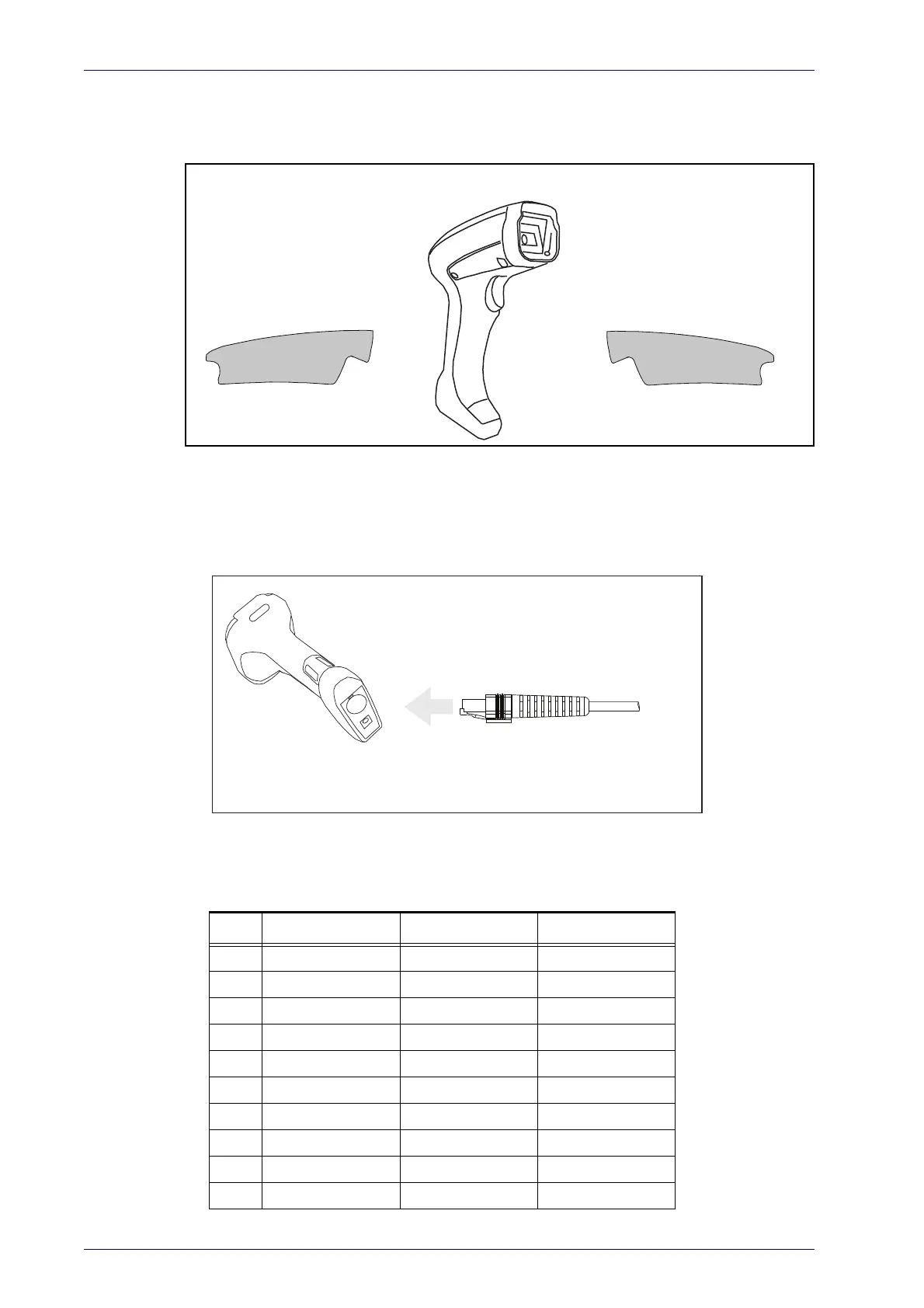

Imager Labeling
Sample labels are shown for illustrative purposes only. Please view the labels
on your product for actual details, as they may vary from those depicted.
Standard Cable Pinouts
The data below provides standard pinout information for the interface cable.
Figure 11. Standard Cable Pinouts: Handheld
The signal descriptions in Table 49 apply to the connector on the reader and
are for reference only.
Table 49.
Standard Cable Pinouts
Pin RS-232 USB Keyboard Wedge
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5 RX
6 TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9 DATAOUT (PC side)
10 CTS (in)
