Setting Up the Scanner
Product Reference Guide 7
Removing the Interface Cable
To remove the Interface Cable:
1. Unlatch the installed cable modular connector by depressing the connector clip with the
end of a paper clip as shown in Figure 2.

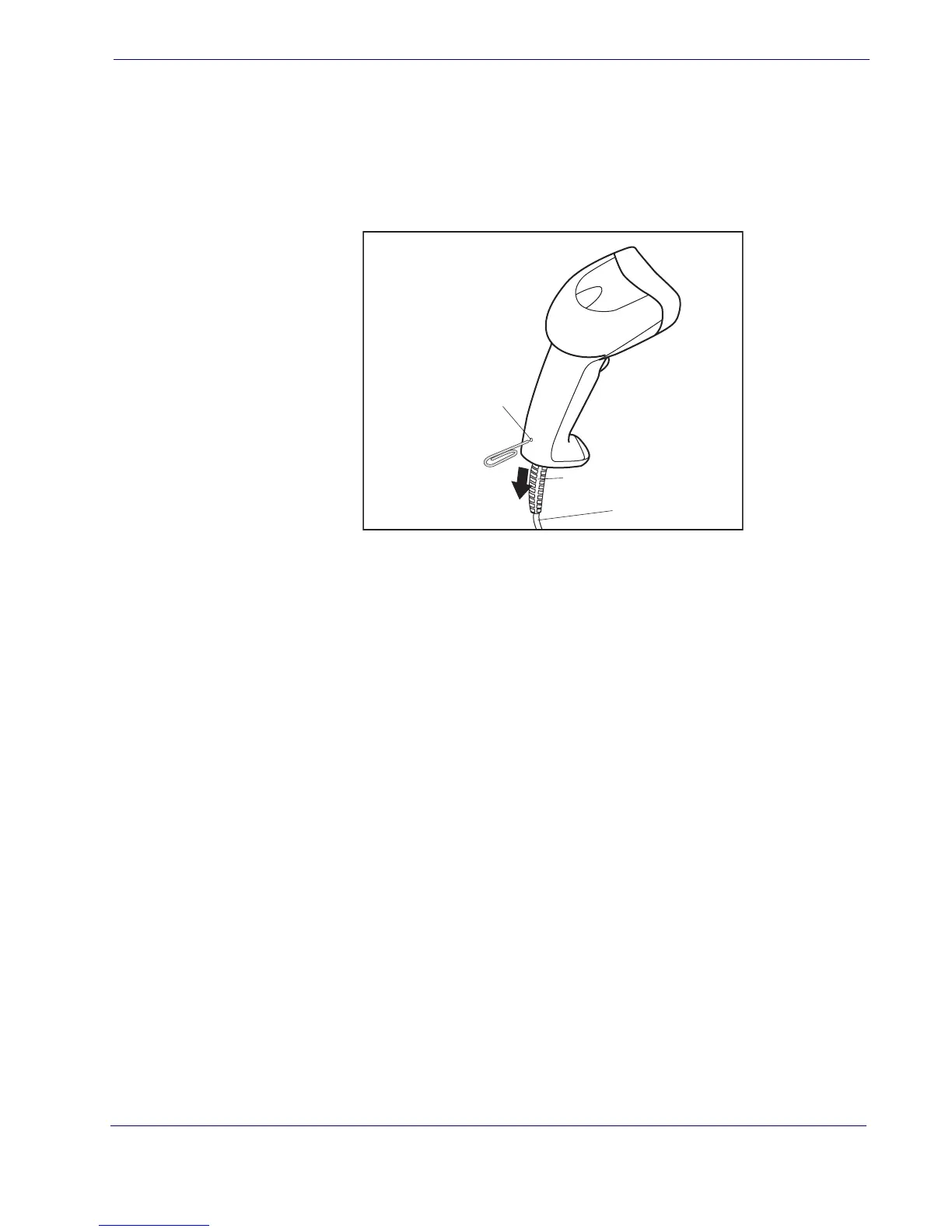

Figure 2. Releasing the Cable Latch
2. Carefully slide out the cable.
3. Follow the steps in the previous section, Installing the Interface Cable, to connect a
new cable.
Connecting Power (if required)
If the host does not provide power to the scanner, an external power connection to the scanner is
required. To connect power:
1. Connect the interface cable to the bottom of the scanner, as previously described in the
section, Installing the Interface Cable.
2. Connect the other end of the interface cable to the host (refer to the host manual to locate
the correct port).
3. Plug the power supply into the power jack on the interface cable. Plug the other end of the
power supply into an AC outlet.
Configuring the Scanner
To configure the scanner, use the bar codes included in this manual.
See Chapter 5, General Features and Chapter 9, Symbologies for information about
programming the scanner using bar code menus. Also see each host-specific chapter to set up a
connection to a specific host type.
Insert a paperclip
into this hole to
release the
cable latch
Strain Relief
Cable
