1.2 BUTTON AND LED INDICATORS
On the face of the TC1200 scanner a keypad is present with a button and three indicator
LEDs which are described in the table below.

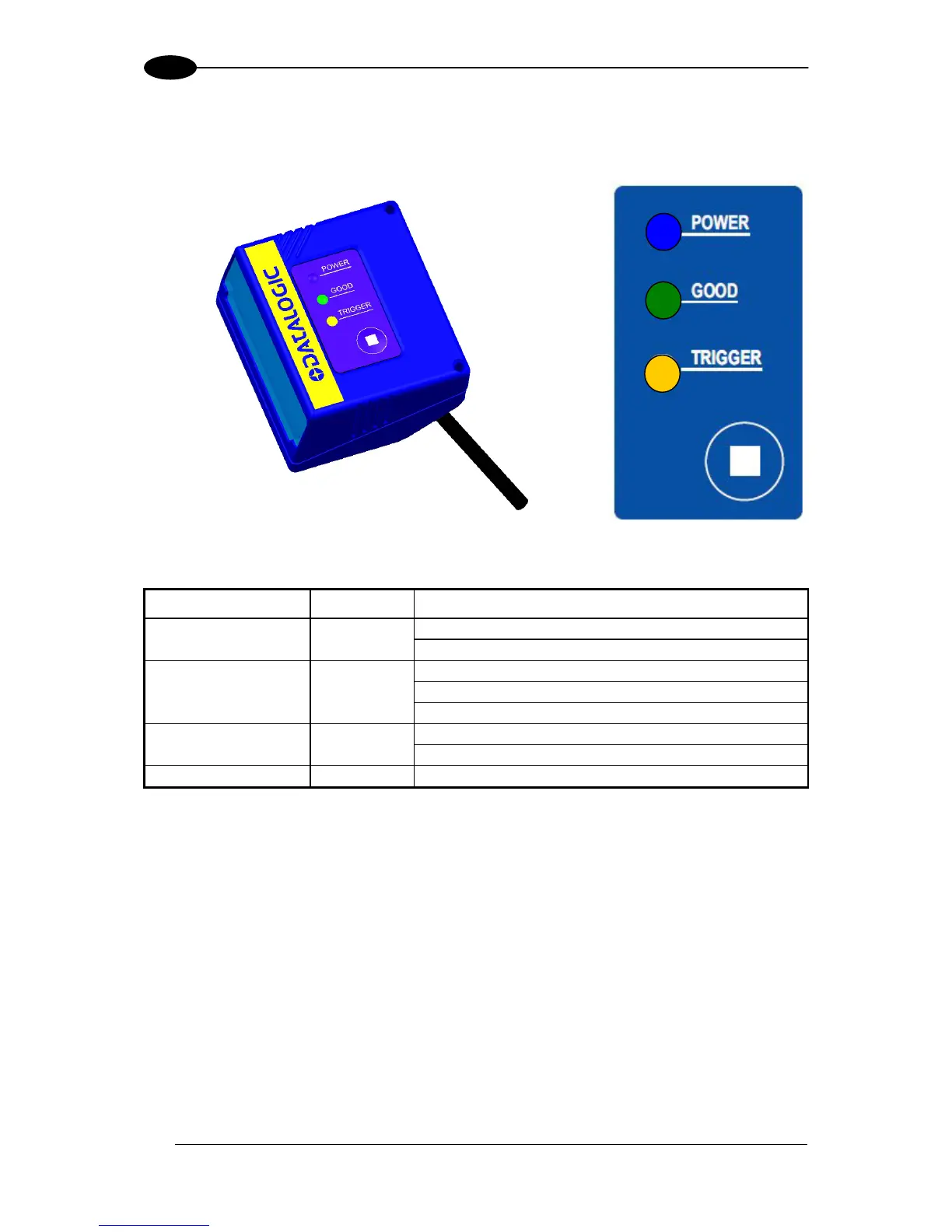

TC1200 Scanner
TC1200 Keypad
INDICATORS Color MEANING
ON = Power ON POWER LED Blue
OFF = Power OFF or standby (only USB model)
ON = Good Read
OFF = No Read
GOOD Read LED Green
Blinks = USB enumeration
ON = External trigger or button pressed TRIGGER LED Yellow
OFF = No trigger
Button Press for manual trigger
1.3 AVAILABLE MODELS
The TC1200 reader is available in models that differ in regard to the following characteristics:
 Output Interface
 Enclosure
The following models are therefore available:
 TC1200-1000 CCD Reader, RS232
 TC1200-1100 CCD Reader, USB
 TC1200-0000 Scan Engine CCD Reader, RS232
 TC1200-0100 Scan Engine CCD Reader, USB
