INSTALLATION
13
2

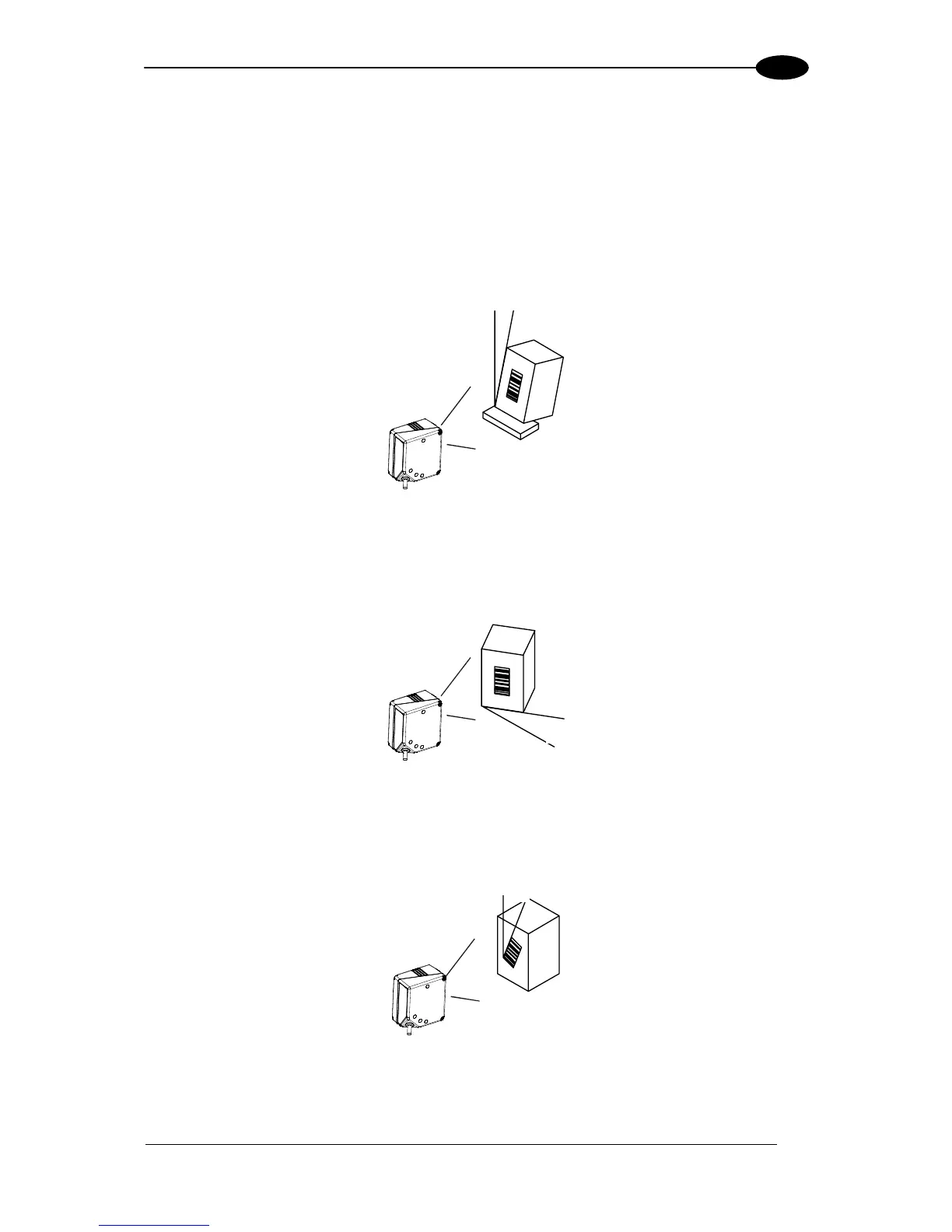

2.3 POSITIONING
The TC1200 Scanner is able to decode barcode labels at a variety of angles, however
significant angular distortion may degrade reading performance.
When mounting the TC1200 take into consideration these three ideal label position angles: Pitch
0°, Skew 10° to 30° and Tilt 0°. Follow the suggestions for the best orientation:
The Pitch angle is represented by the value P in the figure. Position the reader in order to
minimize the Pitch angle.
Figure 19 - Pitch Angle
The Skew angle is represented by the value S in the figure. Position the reader to assure at
least 10° for the Skew angle. This avoids direct light reflection.
Figure 20 - Skew angle
The Tilt angle is represented by the value T in the figure. Position the reader in order to
minimize the Tilt angle.
Figure 21 - Tilt angle
P
S
T
