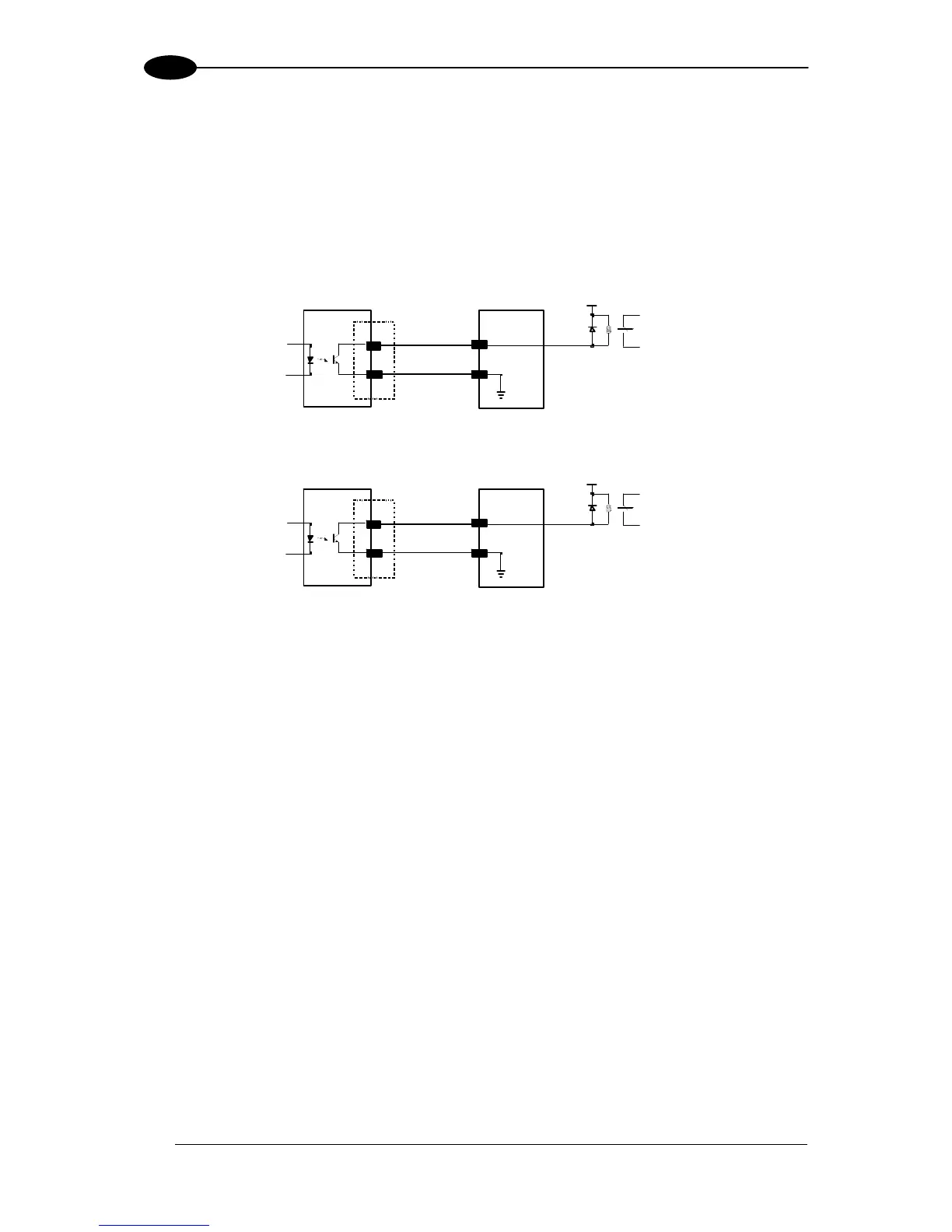

TC1200 REFERENCE MANUAL
12
2
Outputs
There are two outputs available on the TC1200-0000 Scan Engine. Each output can be
activated on one of the following events: Good Read, No Read, Wrong Code.
The active level (high or low) of each Output can also be configured in software.
The pins are indicated in Table 1. The connections are indicated in the following diagram:
USER IN TERFACE
Vext 30 Vdc ma x
OUT1 +
5
4 OUT1/2 -
TC1200
J2
Figure 17 – Output1 Connection. Example NPN
USER IN TERF ACE
Vext 30 Vdc ma x
OUT2 +
3
4 OUT1/2 -
TC1200
J2
Figure 18 – Output2 Connection. Example NPN
