Global AIM ID

NOTE

This feature enables/disables addition of AIM IDs for all symbology types.

AIM label identifiers (as opposed to custom Label IDs you select yourself) can be included

with scanned barcode data. AIM label identifiers consist of three characters as follows:

 A close brace character (ASCII ‘]’), followed by...

 A code character (see the table below), followed by...

 A modifier character (the modifier character is symbol dependent).

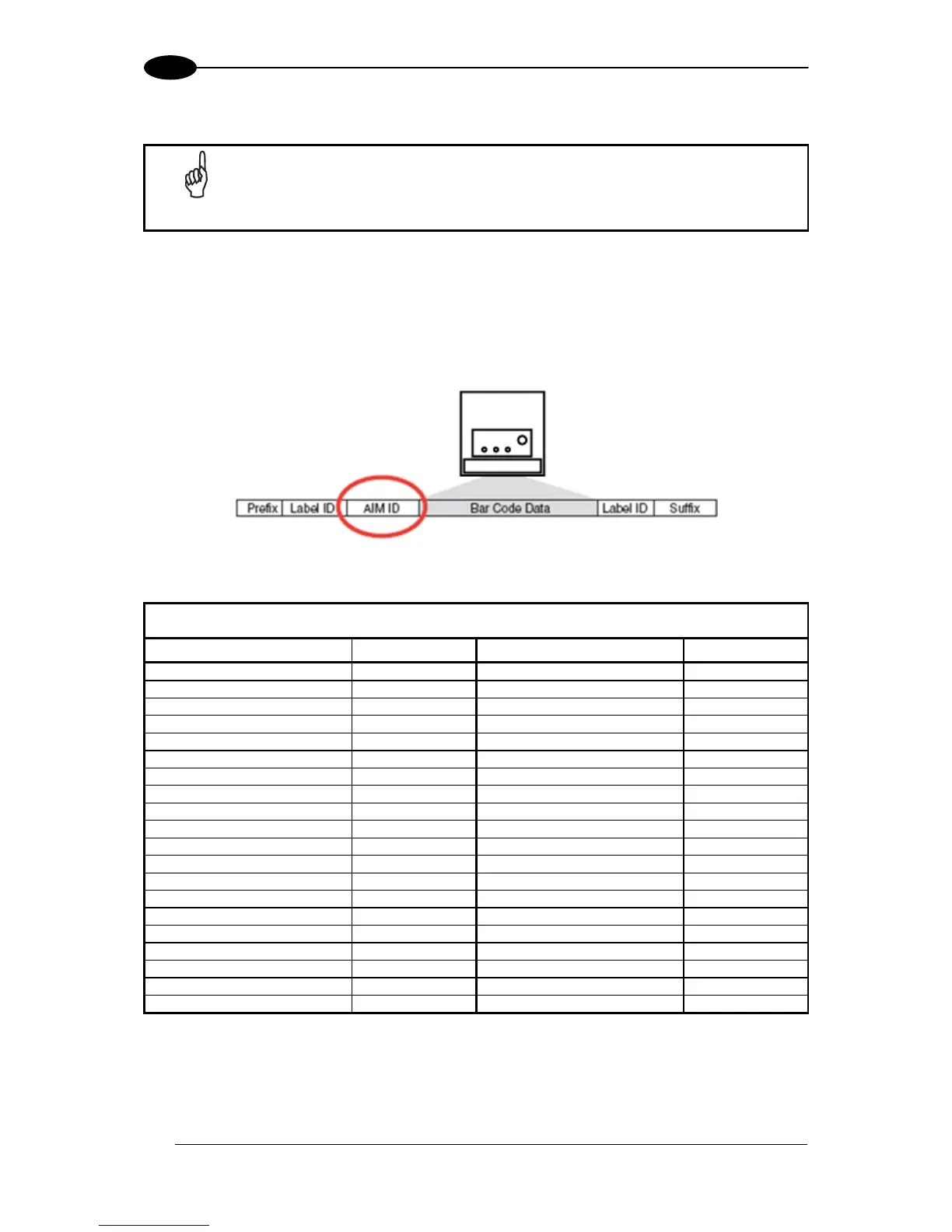

Figure 9 - AIM ID

AIM STANDARD IDENTIFIER TABLE

BARCODE SYMBOLOGY AIM STANDARD BARCODE SYMBOLOGY AIM STANDARD

EAN 8 ] E 4 Code 39 ] A y

EAN 8 with 2 Add On ] E 5 Code 32 ] X y

EAN 8 with 5 Add On ] E 6 Code 128 ] C y

EAN 8 with GS1-128 Add On GS1-128 ] C y

EAN 13 ] E 0 ISBN ] C4

EAN 13 with 2 Add On ] E 1 ISSN ] C4

EAN 13 with 5 Add On ] E 2 ISBT 128 ] C4

EAN 13 with GS1-128 Add On Interleaved 2 of 5 ] I y

UPC A ] X y Standard 2 of 5 ] S y

UPC A with 2 Add On ] X y Codabar ] F y

UPC A with 5 Add On ] X y ABC Codabar ] X y

UPC-A with GS1-128 Add On Code 11 ] G y

UPC E ] X y GS1 Databar Omnidirectional ] e y

UPC E with 2 Add On ] X y GS1 Databar Expanded ] e y

UPC E with 5 Add On ] X y GS1 Databar Limited ] e y

UPC-E with GS1-128 Add On Code 93 ] G y

GTIN ] E 0 MSI ] M y

GTIN with 2 Add On ] E 5

GTIN with 5 Add On ] E 6

GTIN with GS1-128 Add On ] E 2

AIM standard identifiers are not defined for all codes: the X identifier is assigned to the code for which the standard is not

defined. The y value depends on the selected options (check digit calculated or not, check digit tx or not, etc.).
