INSTALLATION
7
2
Outputs
There are two outputs available on the TC1200-1000 Scanner. Each output can be activated
on one of the following events: Good Read, No Read, Wrong Code.
The active level (high or low) of each Output can also be configured in software.
The pins are indicated in Table 1. The connections are indicated in the following diagram:
USER IN TERFACE
Vext 30 Vdc ma x
OUT1 +
5
6 OUT1/2 -
TC1200

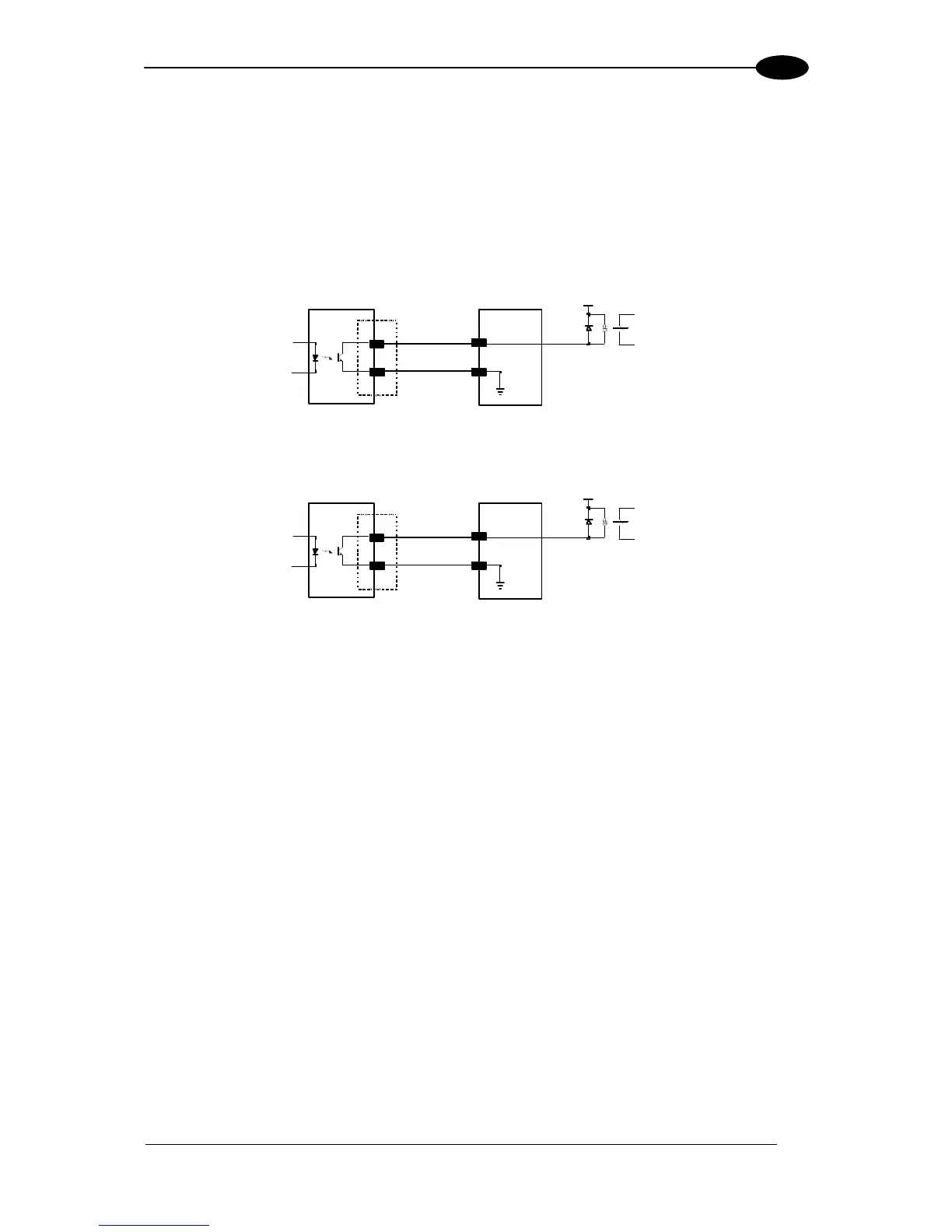

Figure 4 – Output1 Connection. Example NPN
USER IN TERFACE
Vext 30 Vdc ma x
OUT2 +
7
6 OUT1/2 -
TC1200
Figure 9 – Output2 Connection. Example NPN
