ES601Plus OPERATING MANUAL

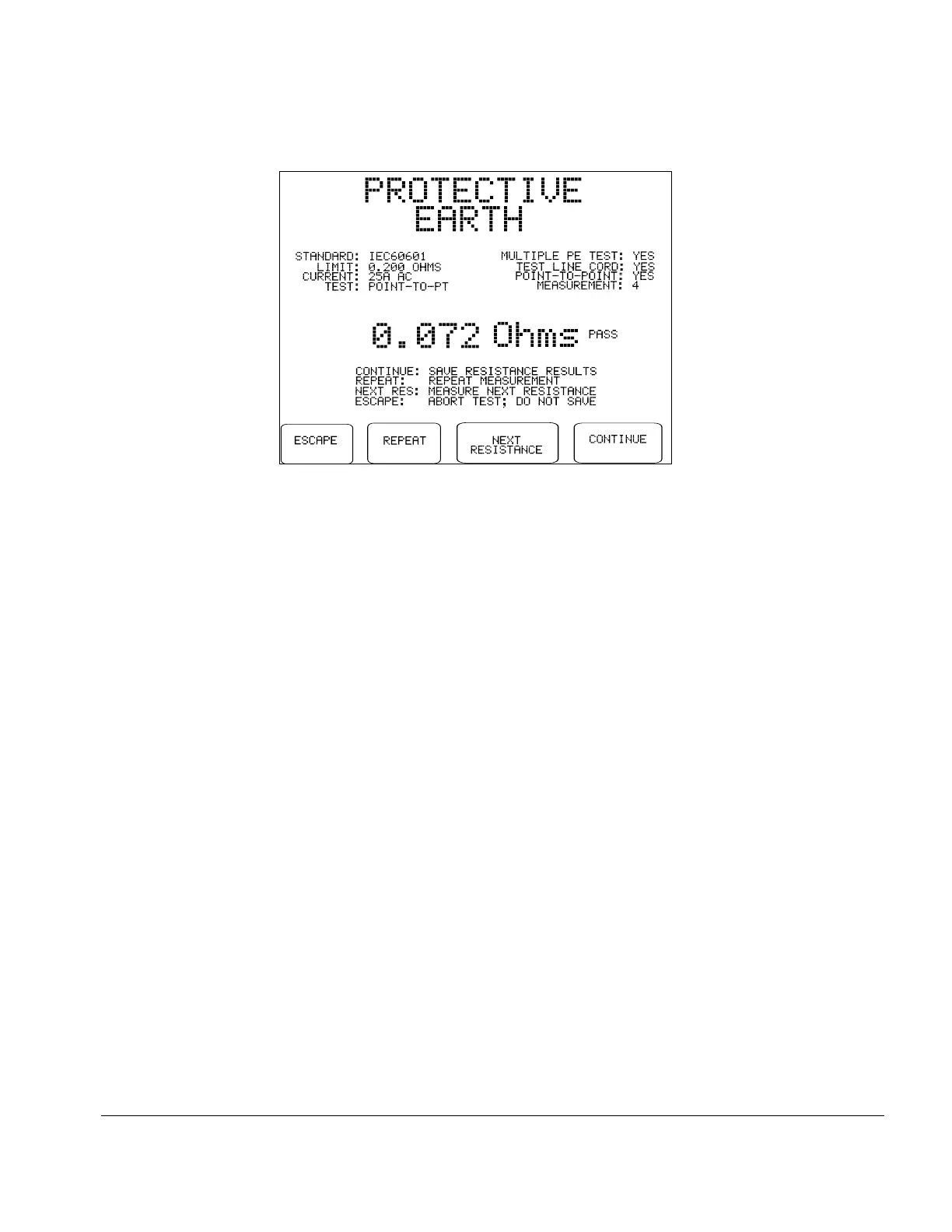

Fig u re 27 - Protective earth test result (multiple PE = "YES").
The buttons provided on this result display are:
ESCAPE:
Returns the display to the MANUAL MODE menu. Acquired
measurements are discarded and not saved to the Clip Record.
REPEAT:
Causes the displayed measurement to be repeated. The
"MEASUREMENT:" counter on the display is not incremented.
NEXT RESISTANCE:
Causes the displayed measurement to be retained and the test to
advance to the next measurement of resistance. The
"MEASUREMENT:" counter is incremented by one. Up to ten
resistance values can be recorded by means of this button. If the button
is pressed more than ten times, the additional measurements overwrite
the tenth resistance recorded.
Normally, the user will change the connection of the Kelvin Cable
and/or "DUT CASE" lead immediately before pressing this button.
This will depend on test requirements and the selected protocol.
CONTINUE:
Moves the acquired resistance values and the Pass/Fail limit to the Clip
Record. If there are previous results from this test in the Clip Record,
they are overwritten. The user interface returns to the MANUAL
MODE menu.
Manual Testing/Chapter 5 # Page 61
