ES601Plus OPERATING MANUAL

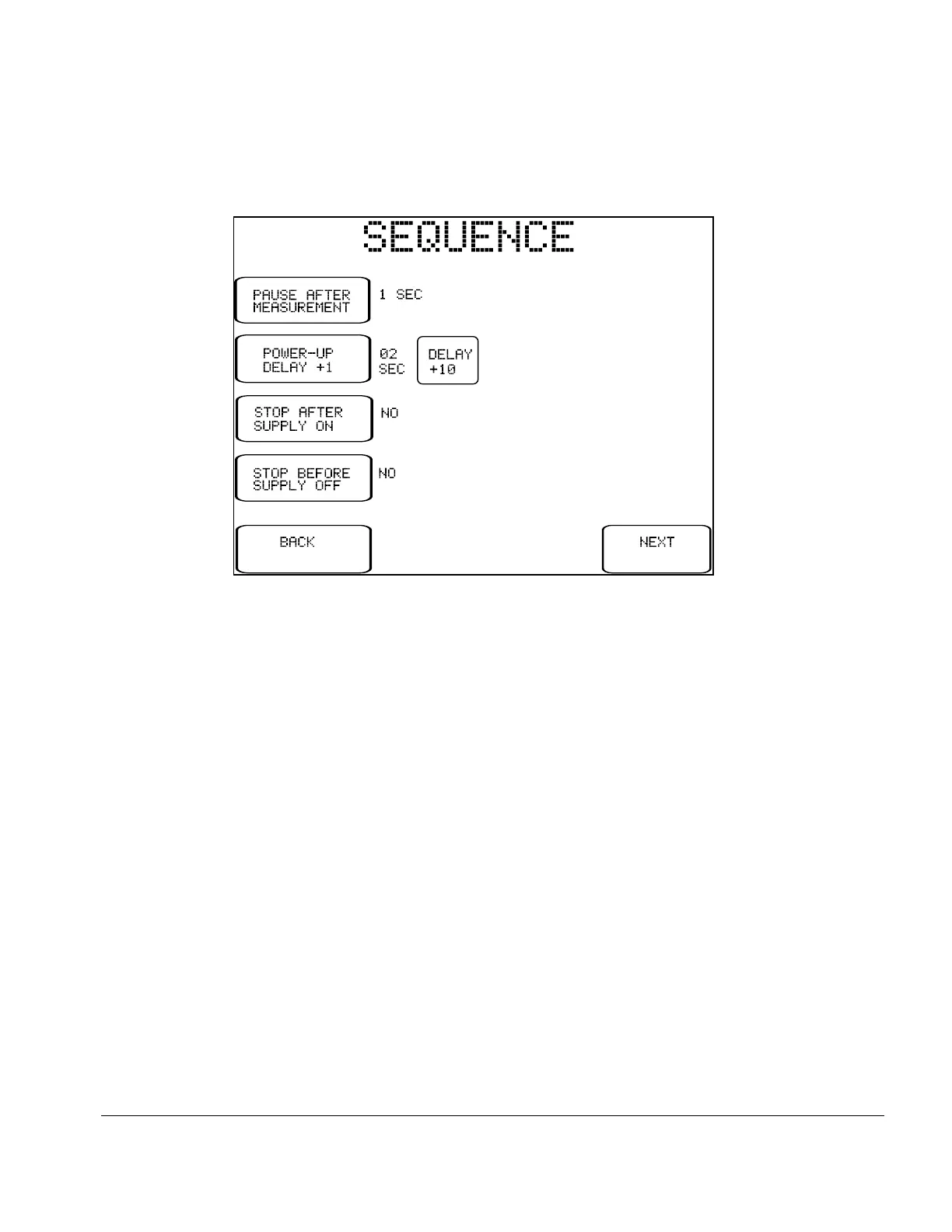

Fig u re 31 - Sequence Controls for manual leakage test.
The buttons provided on the Sequence Control menu are:
PAUSE AFTER
MEASUREMENT:
After each measurement of the test, ES601Plus will pause for the
indicated time before proceeding with the next leakage measurement. The
delay provided by this control allows the user to more easily interrupt a
sequence in progress, so a particular leakage measurement of interest can
be repeated as desired. This control can be set to "NO" to disable the
pause.
POWER UP
DELAY:
During the test, ES601Plus will wait for the indicated time when the AC
supply is applied to the DUT, before proceeding with the sequence. This
delay allows the DUT to start up and stabilize before subsequent leakage
measurements are taken. The available options are 2 to 99 seconds in one
second steps.
Manual Testing/Chapter 5 # Page 71
