ES601Plus OPERATING MANUAL
Fig u re 36 - Break if "STOP BEFORE..." is set to "YES".
The leakage sequence proceeds with NC tests after you press CONTINUE. Alternatively, you may
press ESCAPE to abort the leakage test and return to the MANUAL MODE menu. Note the
purpose of the "STOP AFTER..." break is to allow you activate a DUT which cannot be switched
ON until a full AC supply is provided to the DUT.

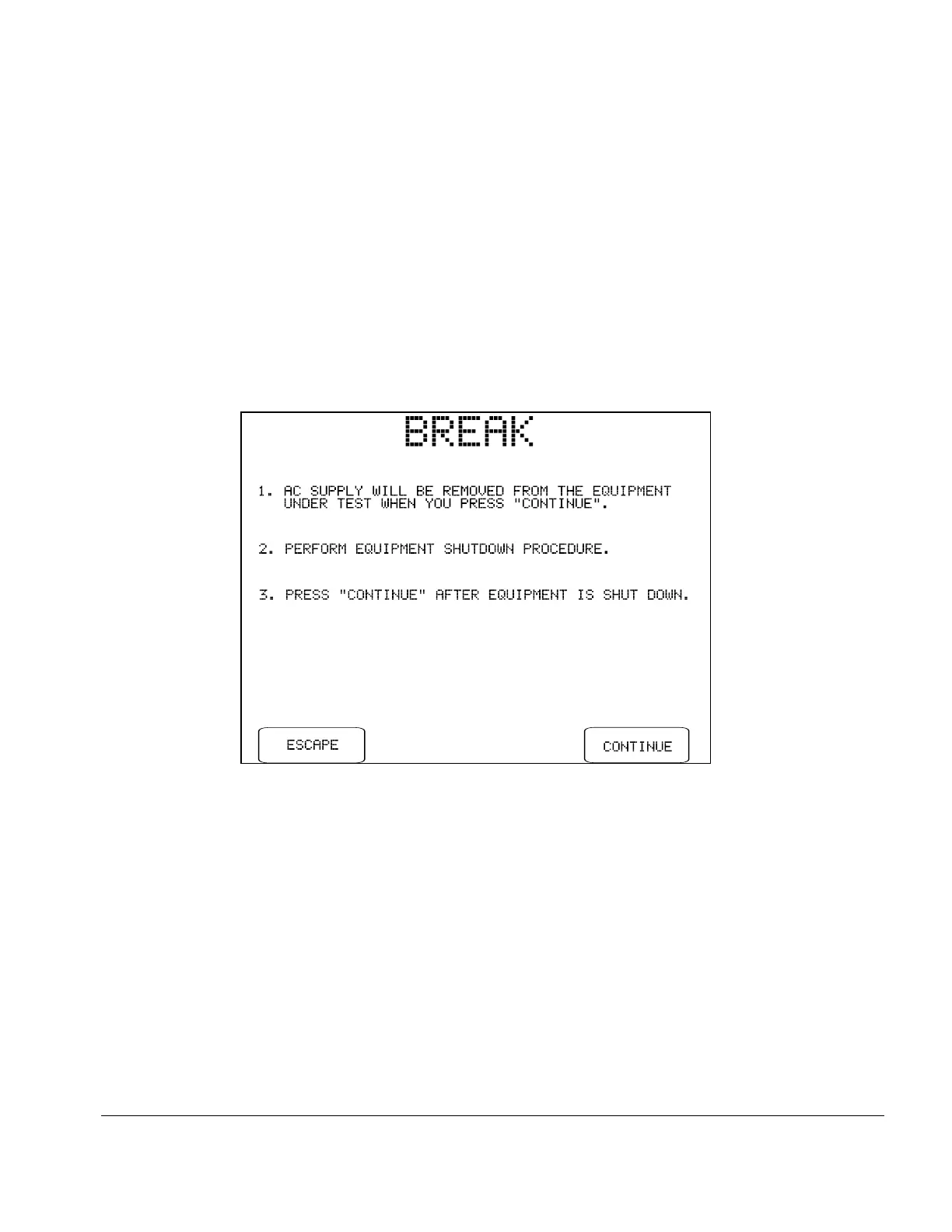

When ES601Plus changes the AC supply from NC to SF:L2O, ES601Plus will not stop if "STOP
BEFORE..." of the Sequence Controls is "NO" (Fig u re 31). If "STOP BEFORE..." is "YES",
ES601Plus will stop and prompt you to shut down the equipment before supply Line 2 is
disconnected:
After CONTINUE is pressed, ES601Plus will disconnect Line 2 from the DUT and will then
prompt you to reset the DUT power switch to "ON". This is necessary to satisfy the requirements
of the leakage test, but the instruction can be ignored if the DUT is of the type that cannot be set to
"ON" unless a full AC supply is provided.
Manual Testing/Chapter 5 # Page 77
