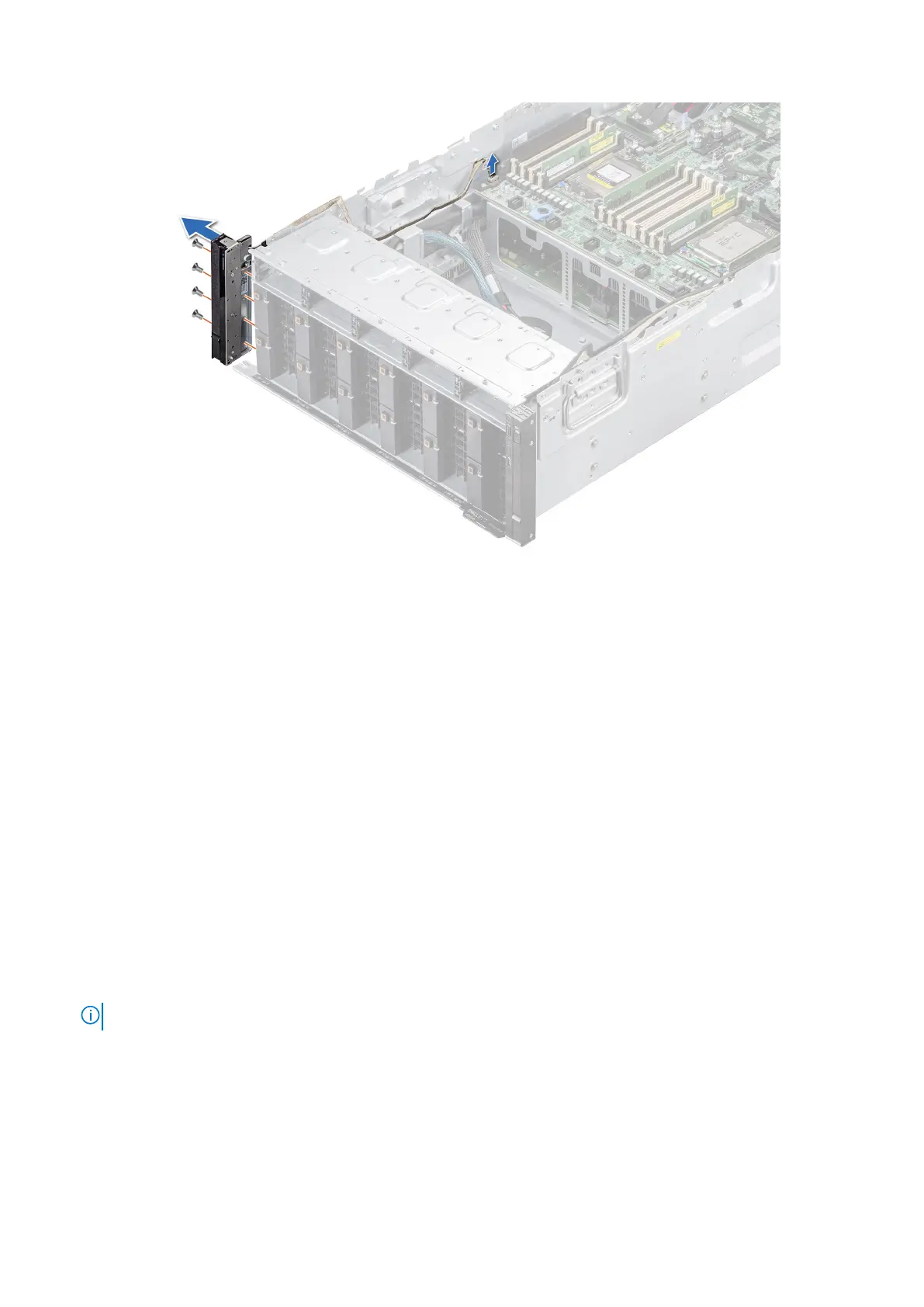

Figure 126. Removing the left control panel
Next steps
Replace the left control panel.
Installing the left control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 23.
2. Follow the procedure listed in Before working inside your system on page 24.
3. Remove the middle top cover.
4. Remove the air shroud.
5. Remove the cooling fan assembly.
6. Remove the side wall bracket.
Steps
1. Align and slide the left control panel in the slot on the system and secure them to the system with four screws.
2. Connect the left control panel cable to the connector on the system board.
3. Route the left control panel cable through the side wall of the system. Align the front top cover to the system.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
