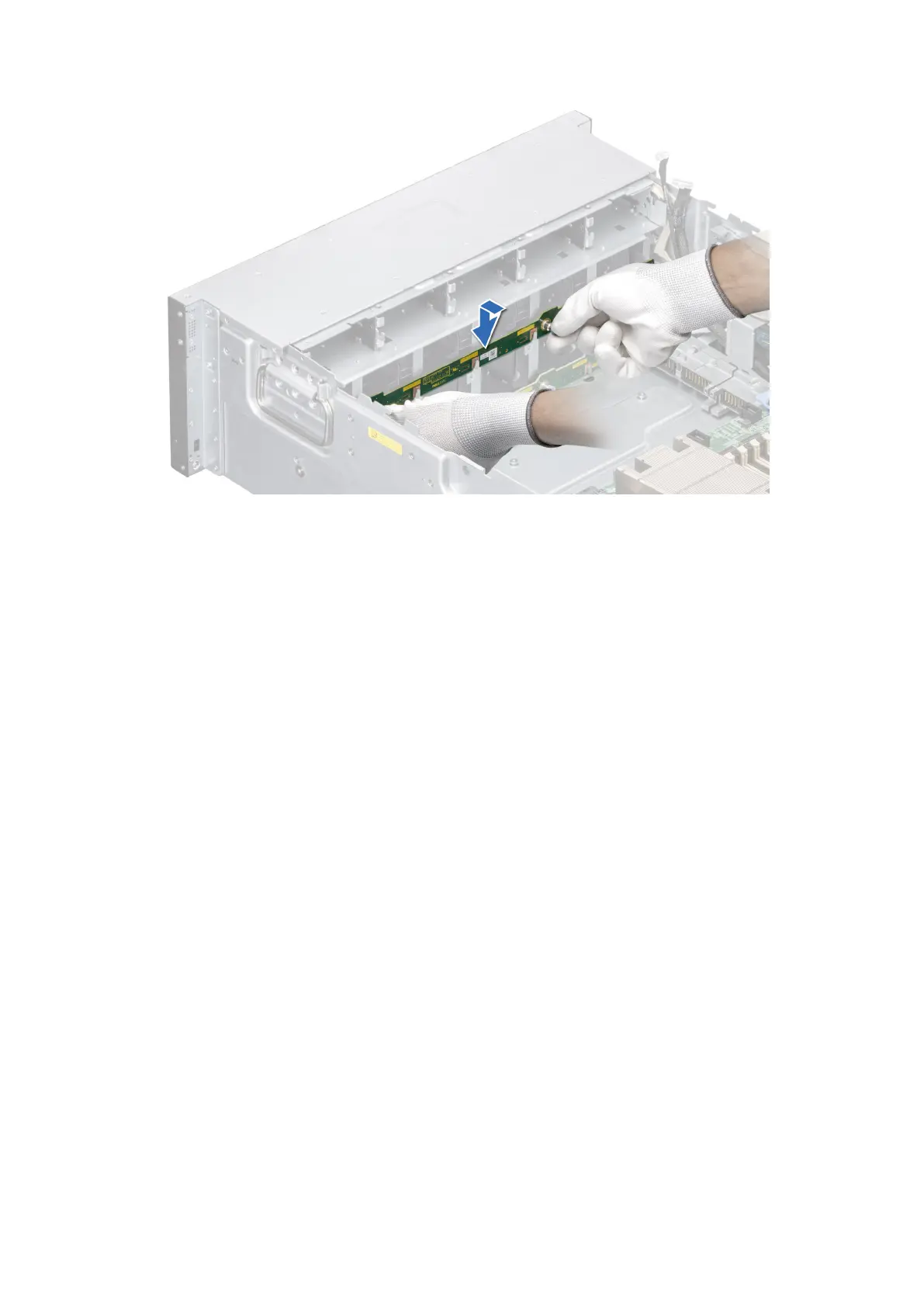

Figure 58. Installing the hot-plug fan board
Next steps
1. Install the Nvidia A100 GPU assembly.
2. Install the GPU air shroud.
3. Connect the drive backplane cables from the connector on the backplane.
4. Install the middle top cover.
5. Install the GPU fans.
6. If removed, install the front bezel.
7. Follow the procedure listed in After working inside your system on page 24.
System memory
System memory guidelines
The PowerEdge XE8545 system supports DDR4 registered DIMMs (RDIMMs). System memory holds the instructions that are
started by the processor.
Your system memory is organized into eight channels per processor (two memory sockets per channel),16 memory sockets per
processor and 32 memory sockets per system.
60
Installing and removing system components
