Removing the Versabay assembly (Power Interposer Board)
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 23.
2. Follow the procedure listed in the Before working inside your system on page 24.
3. Remove the air shroud
4. Remove the expansion card risers.
Steps
1. Remove the screws and disconnect the power cables.
2. Disconnect the signal cable.
3. Unlock the plungers and slide the Versabay tray to rear of the system.
4. Disengage the Versabay assembly from the chassis and lift it out of the system.
NOTE: The procedure is similar for both Versabay assembly components.

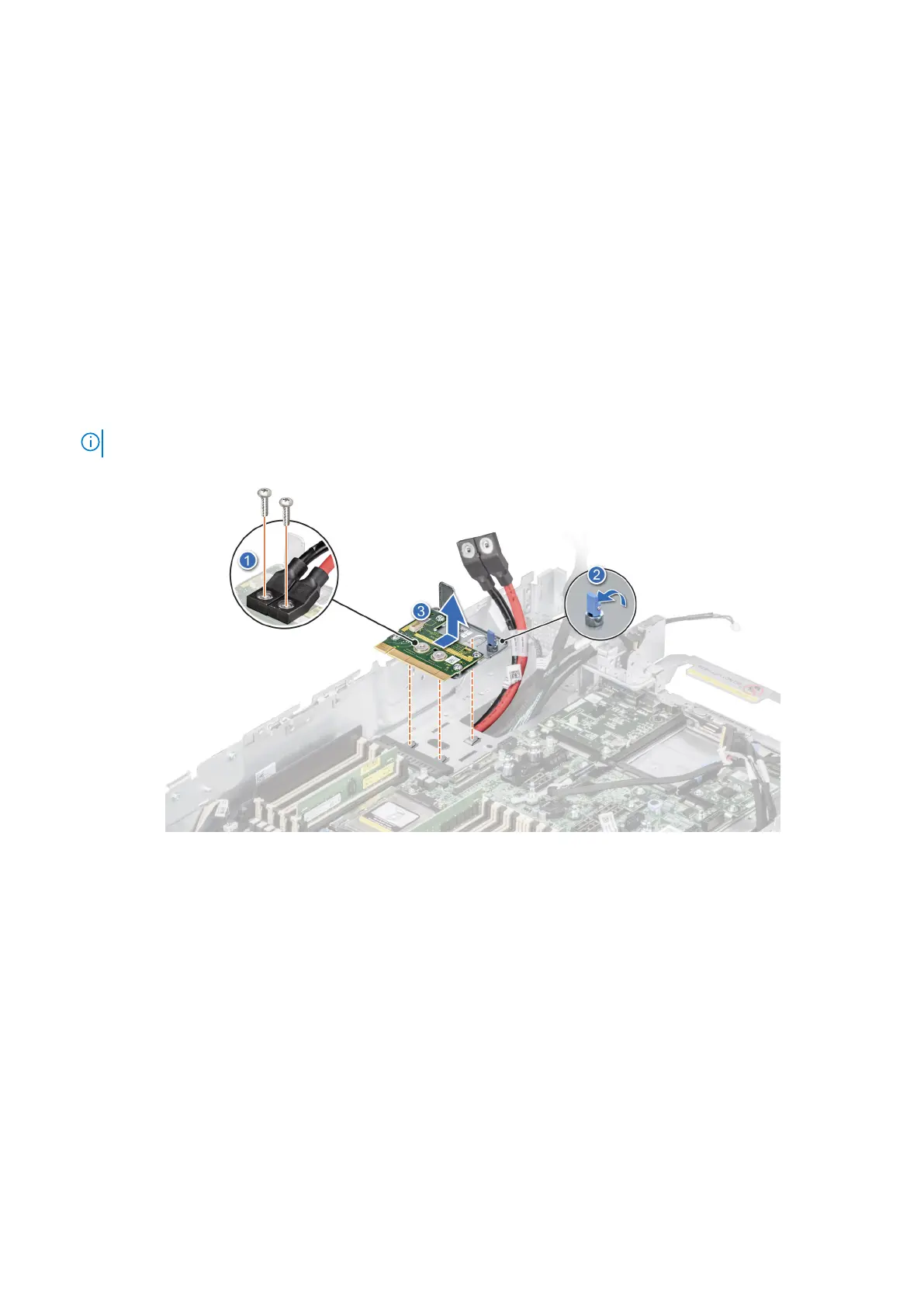

Figure 101. Removing the Versabay assembly
Next steps
Replace the Versabay assembly.
Installing the Versabay assembly (Power Interposer Board)
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 23.
2. Follow the procedure listed in the Before working inside your system on page 24.
3. Remove the air shroud
4. Remove the expansion card risers.
