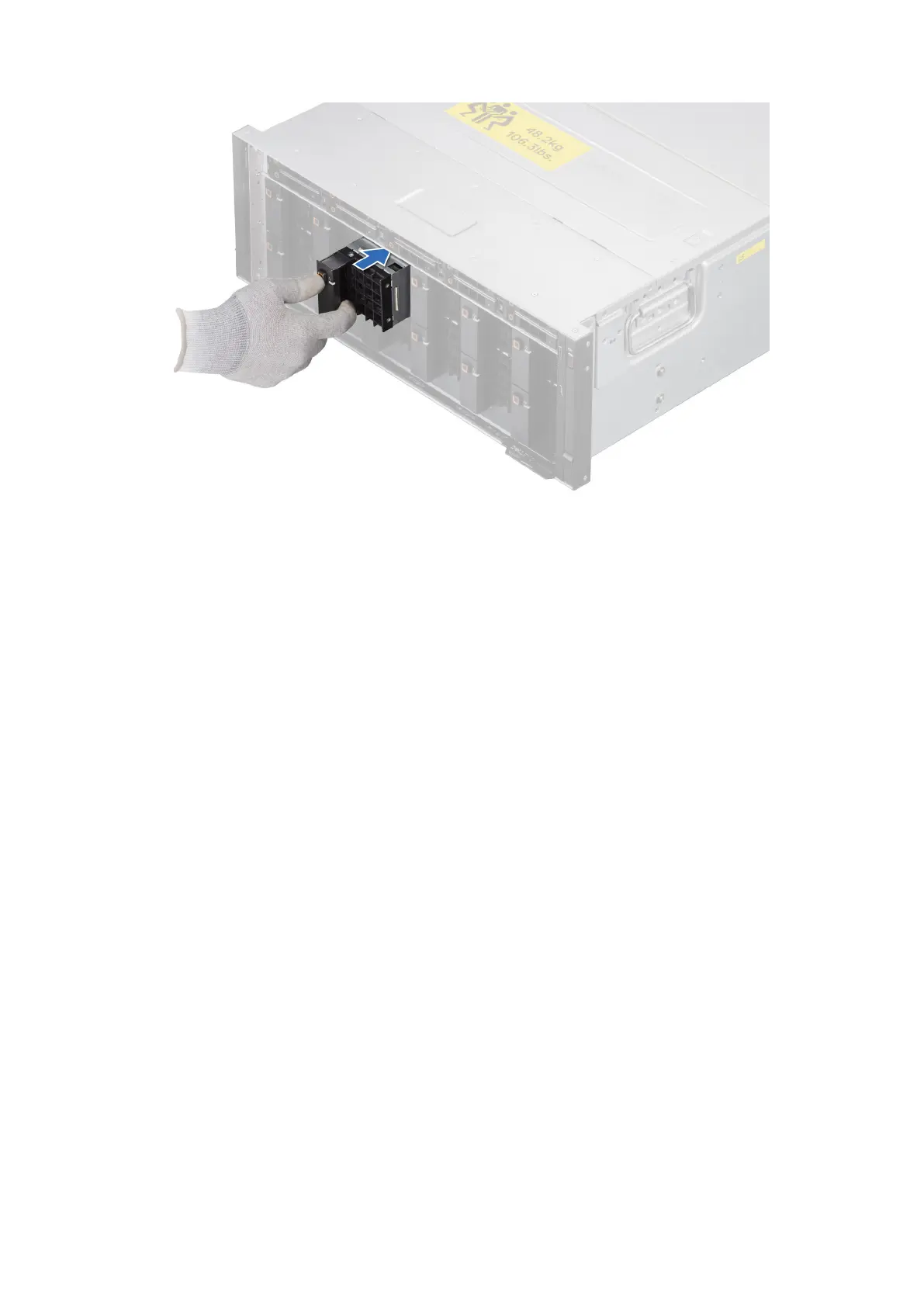

Figure 20. Installing a GPU fan
Next steps
If removed, install the front bezel.
Middle top cover
Removing the middle top cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 23.
2. Follow the procedure listed in Before working inside your system on page 24.
Steps
1. Slide the middle top cover in the direction of the arrows marked on the middle top cover.
2. Lift the middle top cover from the system.
30
Installing and removing system components
