Dell EMC PowerEdge XE8545 - Installing the M.2 SSD Module

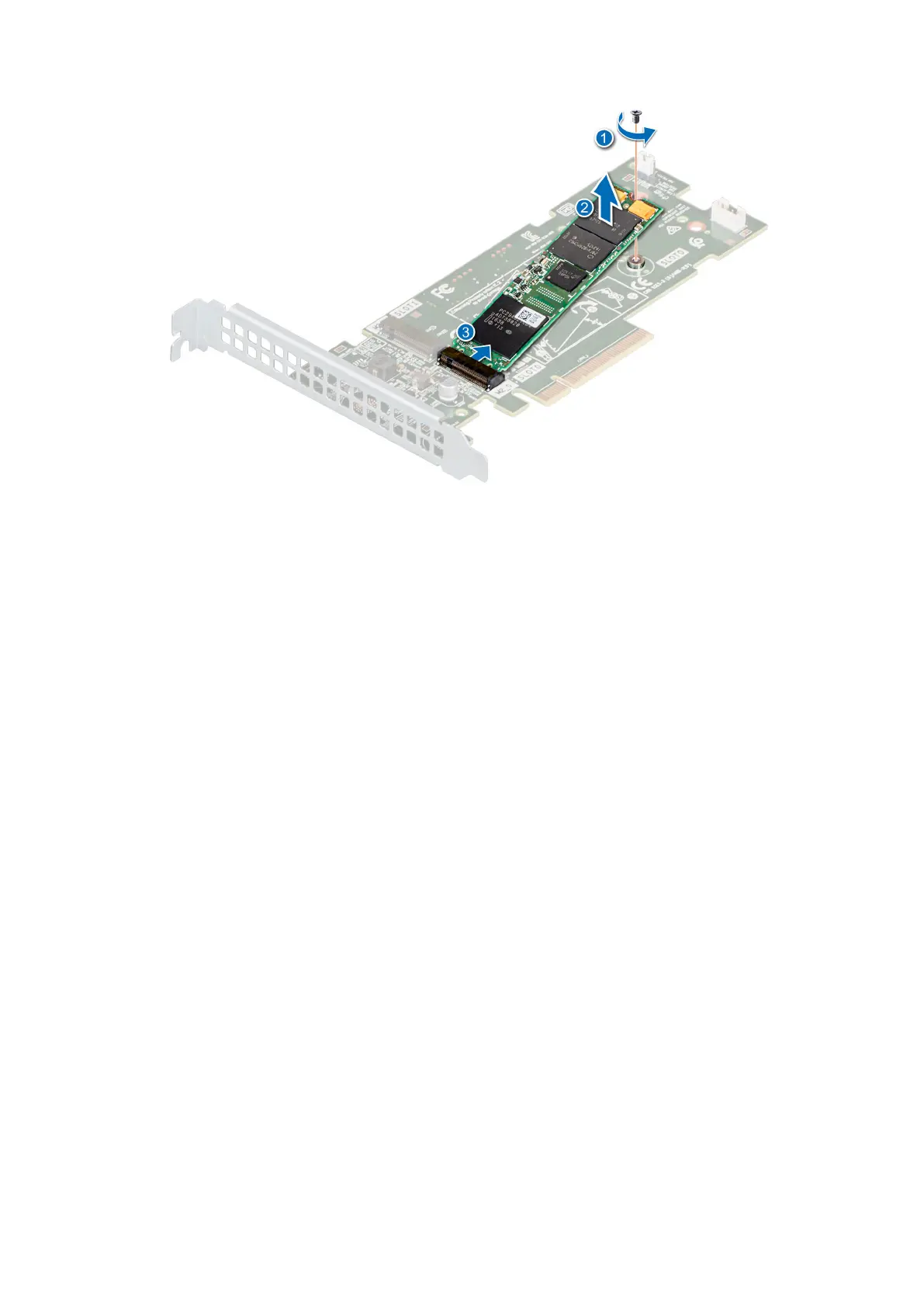

Figure 92. Removing the M.2 SSD module
Next steps
Replace the M.2 SSD module.
Installing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 23.
2. Follow the procedure listed in the Before working inside your system on page 24.
3. Remove the BOSS card. Removing BOSS card is similar to removing expansion card from the expansion card riser.
Steps
1. Align the M.2 SSD module at an angle with the BOSS card connector.
2. Insert the M.2 SSD module until it is firmly seated in the BOSS card connector.
3. Using the Phillips #1 screwdriver, secure the M.2 SSD module on the BOSS card with the screw.
