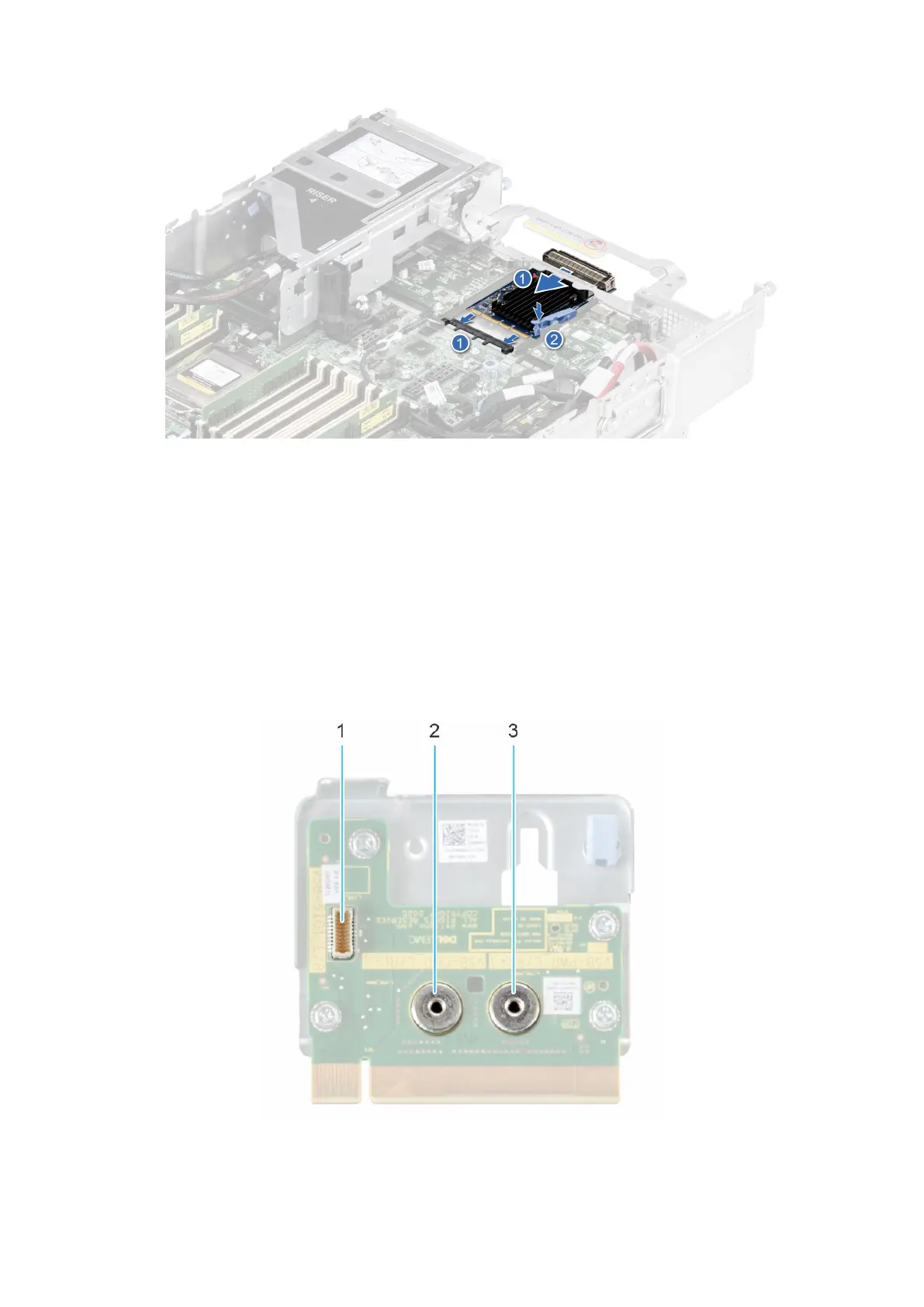

Figure 99. Installing the OCP card
Next steps
1. Install the expansion card riser.
2. Follow the procedure listed in After working inside your system on page 24.
Versabay assembly (Power Interposer Board)
Versabay board view
Figure 100. Versabay board connectors
1. VSB-SIG1 L/R
2. VSB-GND L/R (-)
Installing and removing system components
93
