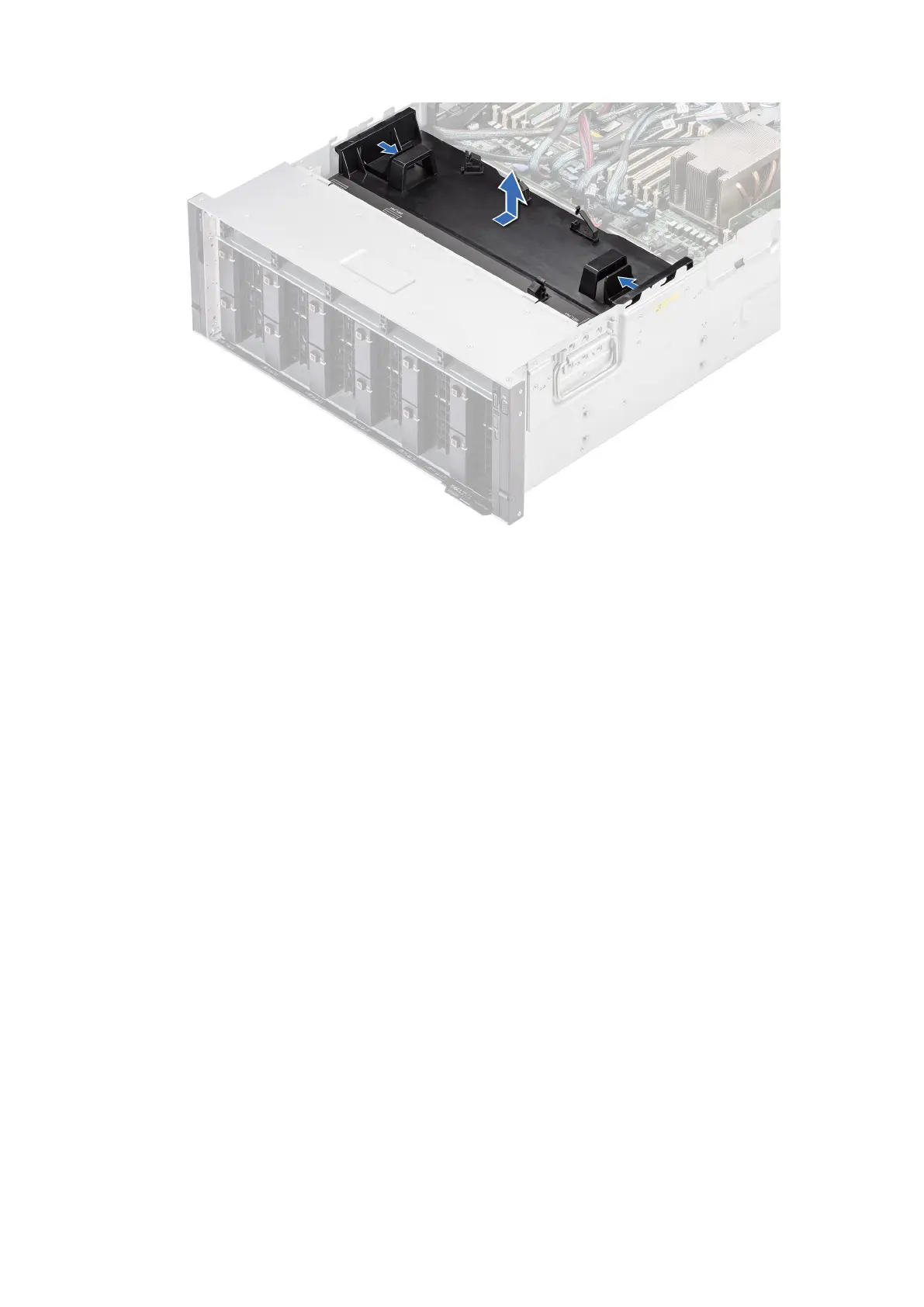

Figure 25. Removing the GPU air shroud
2. Tilt the front of the GPU air shroud and lift it out of the system.
Next steps
Replace the GPU air shroud.
Installing the GPU air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 23.
2. Follow the procedure listed in Before working inside your system on page 24.
3. Remove the middle top cover.
4. Disconnect all cables that are connected to the drive backplane.
Steps
1. Hold the GPU air shroud with the front tilted up at an angle.
2. Lower the GPU air shroud into the system and slide the GPU air shroud to the front of the system, until it clicks firmly into
place.
Installing and removing system components
35
