2. Lift the release latch until the system cover slides back.
3. Lift the cover from the system.

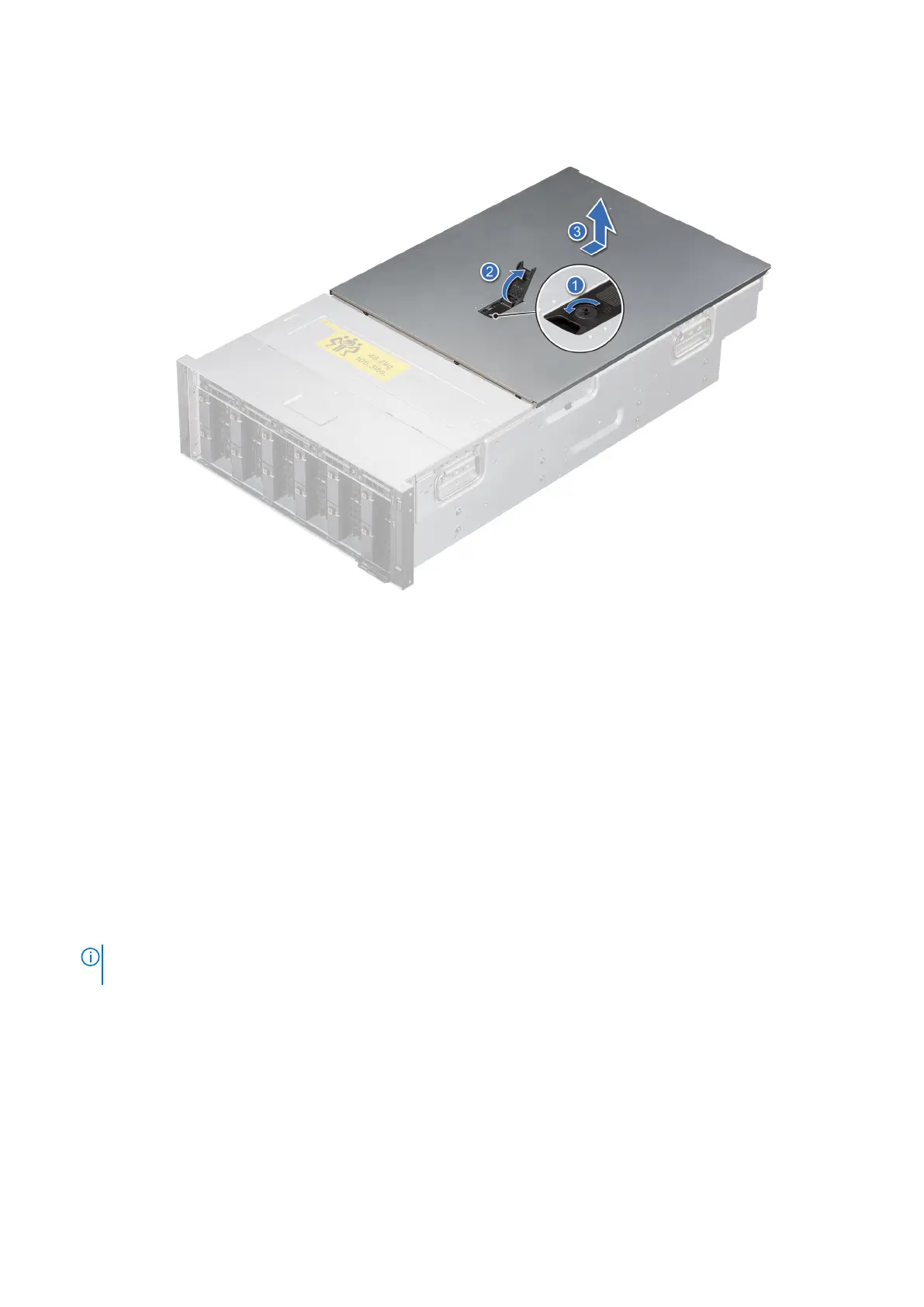

Figure 17. Removing the system cover
Next steps
Replace the system cover.
Installing the system cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 23.
2. Ensure that all internal cables are connected and routed properly, and no tools or extra parts are left inside the system.
Steps
1. Align the tabs on the system cover with the guide slots on the system and slide the system cover.
2. Close the system cover release latch.
NOTE:
Ensure that the system cover closes without obstruction or unnecessary force. Reseat any cables or
components or realign the system cover if necessary.
3. Using a 1/4-inch flat head or Phillips #2 screwdriver, rotate the lock clockwise to the lock position.
Installing and removing system components
27
