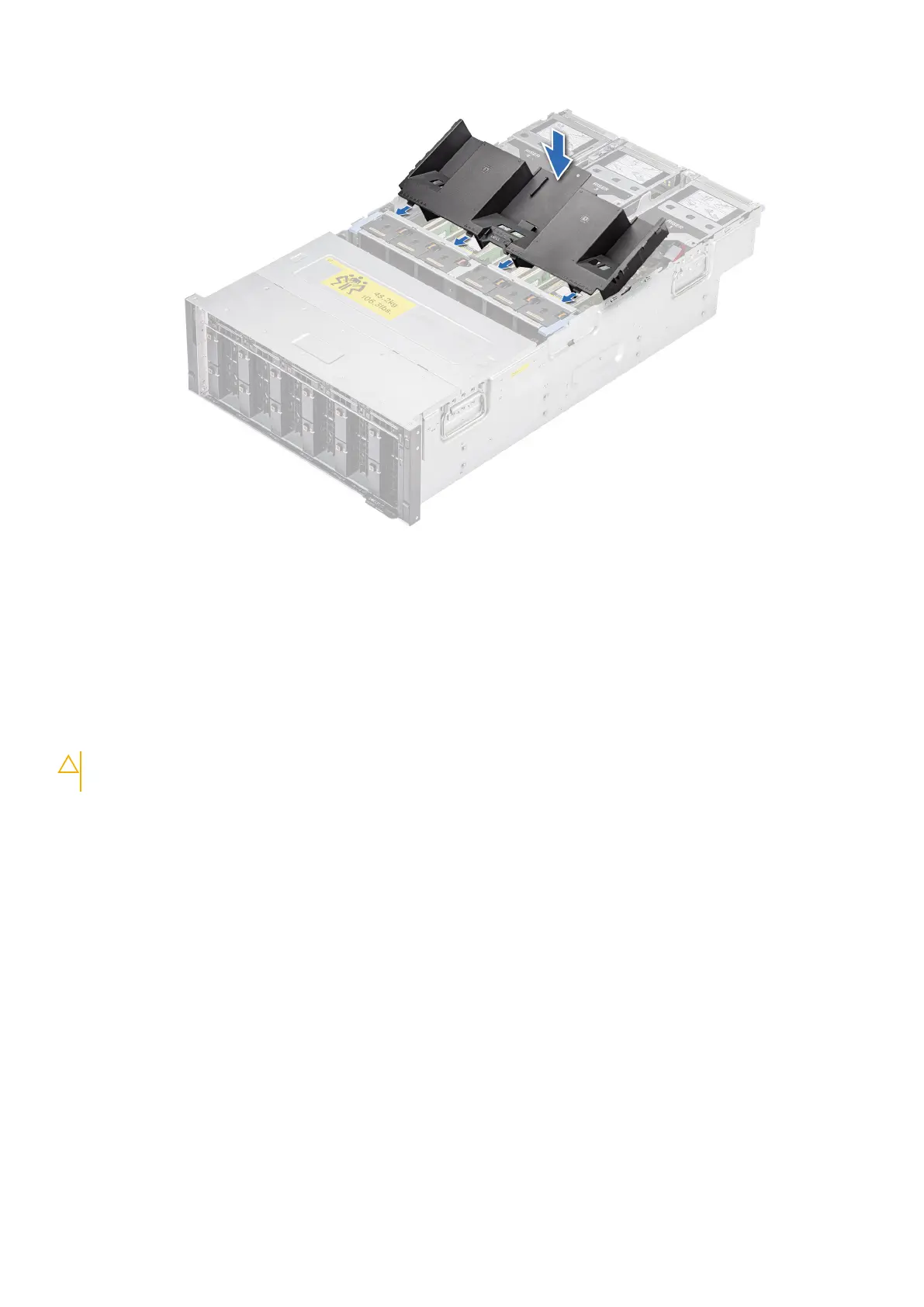

Figure 24. Installing the air shroud
Next steps
Follow the procedure listed in After working inside your system on page 24.
Removing the GPU air shroud
Prerequisites
CAUTION:
Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions on page 23.
2. Follow the procedure listed in Before working inside your system on page 24.
3. Remove the middle top cover.
4. Disconnect all cables that are connected to the drive backplane.
Steps
1. Press the release latches of the GPU air shroud, and slide the GPU air shroud towards to rear of the system.
