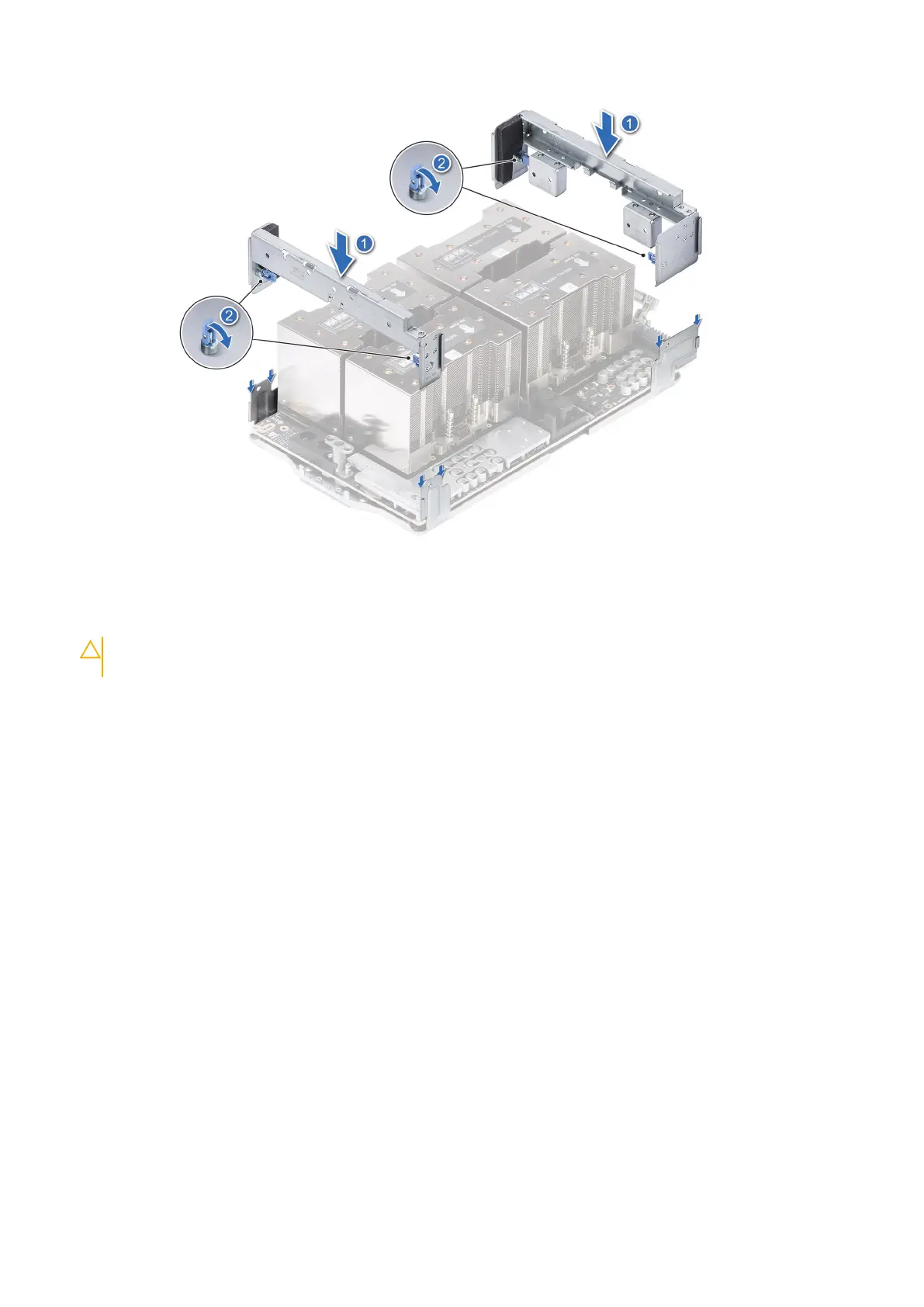

Figure 47. Installing the GPU tray handles
8. Slide the GPU assembly to the right of the system to disengage the GPU tray from the connector and the guide pins on the
system.
CAUTION:
While removing the GPU assembly from the system, ensure that the GPU connectors do not
collide with anything, to avoid damage.
9. Hold the GPU tray handles and lift the GPU assembly out of the system.
Installing and removing system components
53
