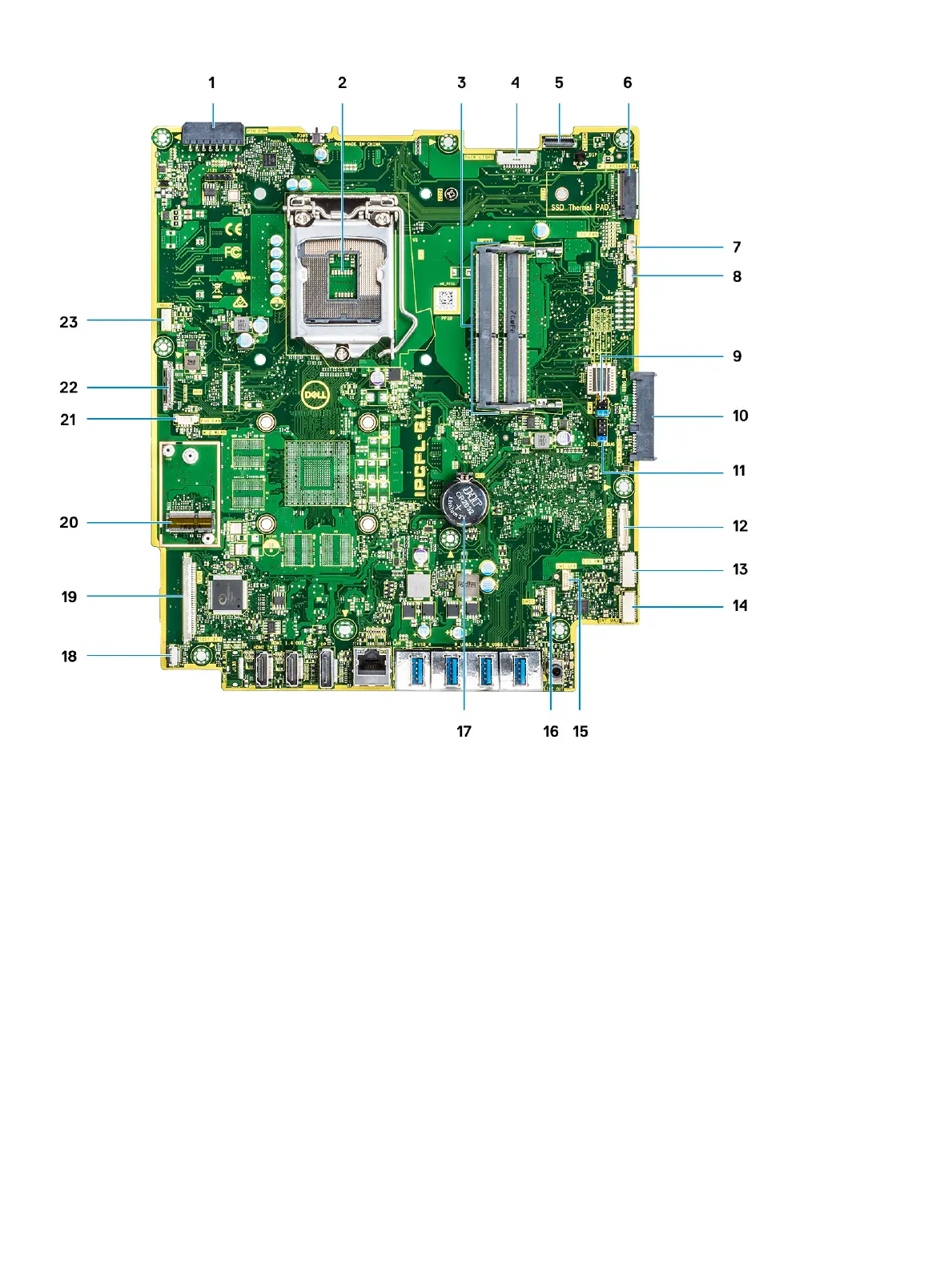

1 PSU power connector 2 Processor
3 Memory slots 4 Back light connector
5 Webcam connector 6 M.2 PCIe/SATA slot
7 System fan connector 8 LPC_Debug
9 Service mode jumper/Password clear jumper/CMOS clear
jumper
10 SATA HDD connector
11 SPI header 12 SIO_signal connector
13 SIO_power connector 14 UAJ connector
15 INT_SPK connector 16 DMIC connector
17 Coin cell battery 18 Power board button connector
19 LVDS connector 20 M.2 WLAN slot
21 PSU fan 22 eDP cable connector
23 Touch cable connector
Removing and Installing components 17
