Coin cell battery
Removing the coin cell battery
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield

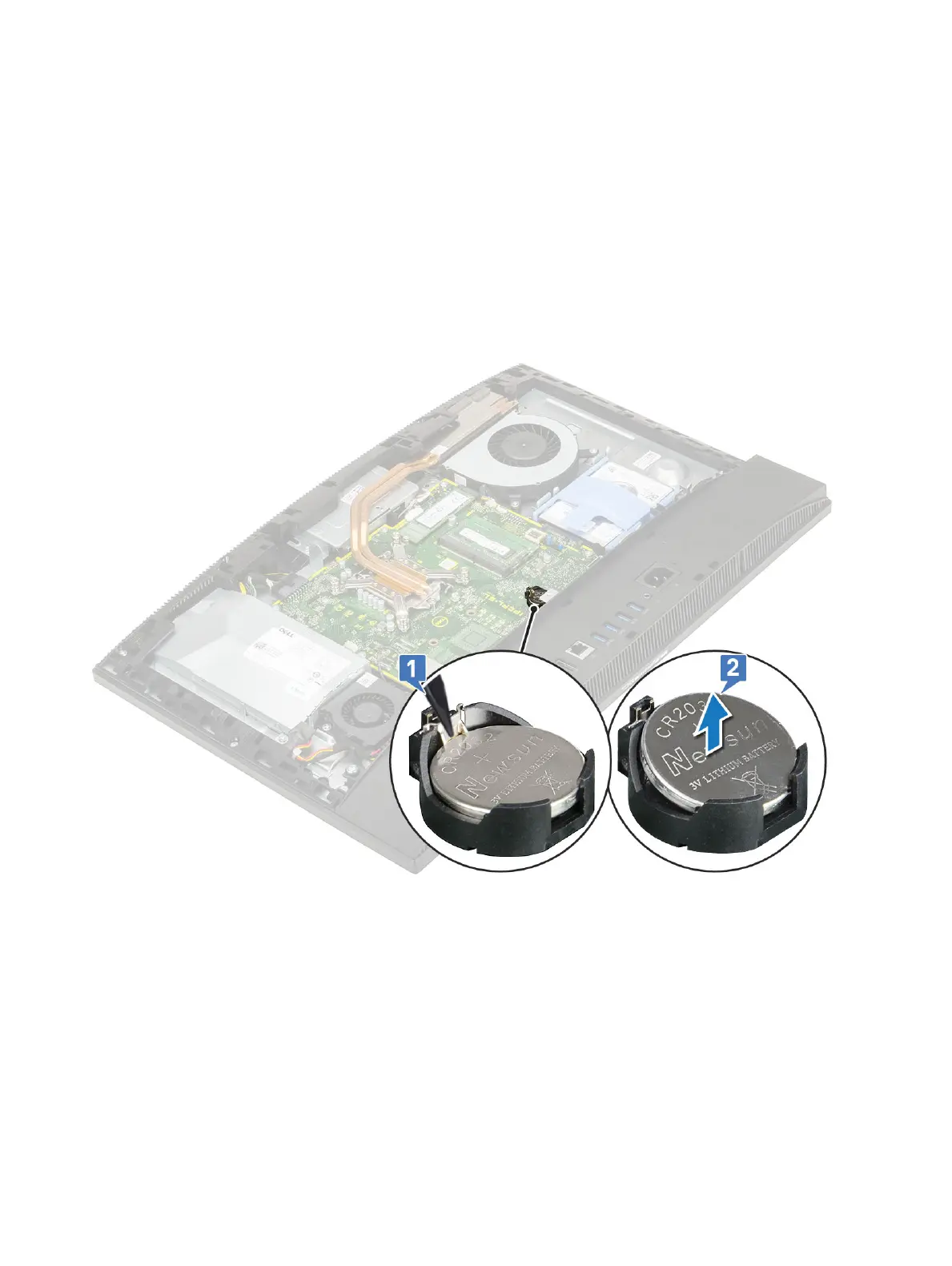

3 Press the tab on the coin cell battery socket until the coin cell battery pops up [1].
4 Lift the coin cell battery out of the coin cell battery socket [2].
Installing the coin cell battery
1 Insert the coin cell battery into the battery socket on the system board, with the positive side facing up [1].
2 Press down the battery into place until it ts securely [2].
3 Install the following components:
Removing and Installing components
45
