Removing the middle frame
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield
d Base cover
e I/O bracket
f Speakers
g System fan
h Hard drive
i WLAN card
j System board
k PSU
l PSU fan
m Camera
n I/O board
o Headset port
p Antennas
q Microphones
r Power button board
s Display panel

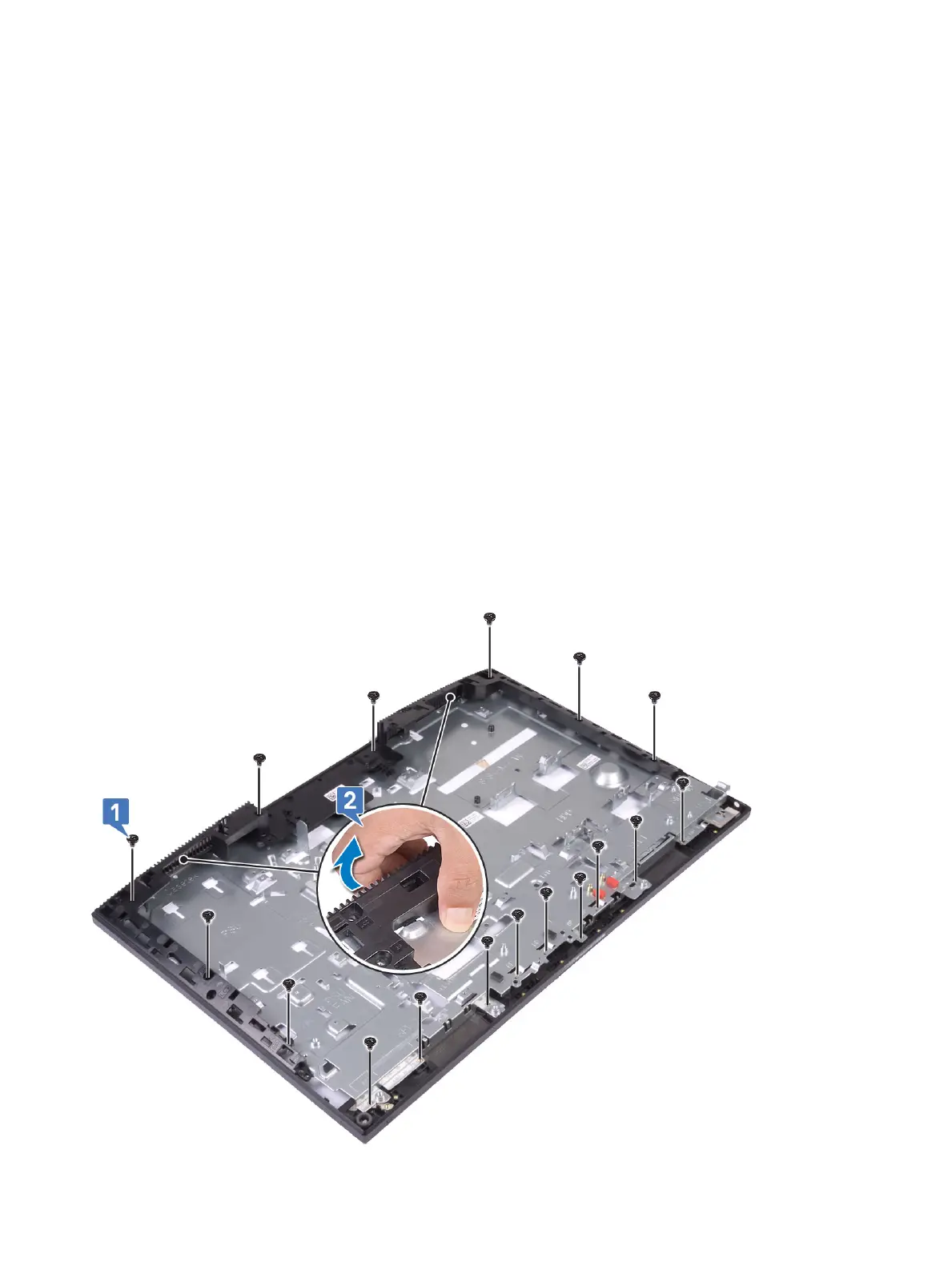

3 Remove the 15 screws (M3x5) that secure the middle frame to the display assembly base [1].
4 Slide and lift to release the tabs on the middle frame from the slots on the display assembly base [2].
92
Removing and Installing components
