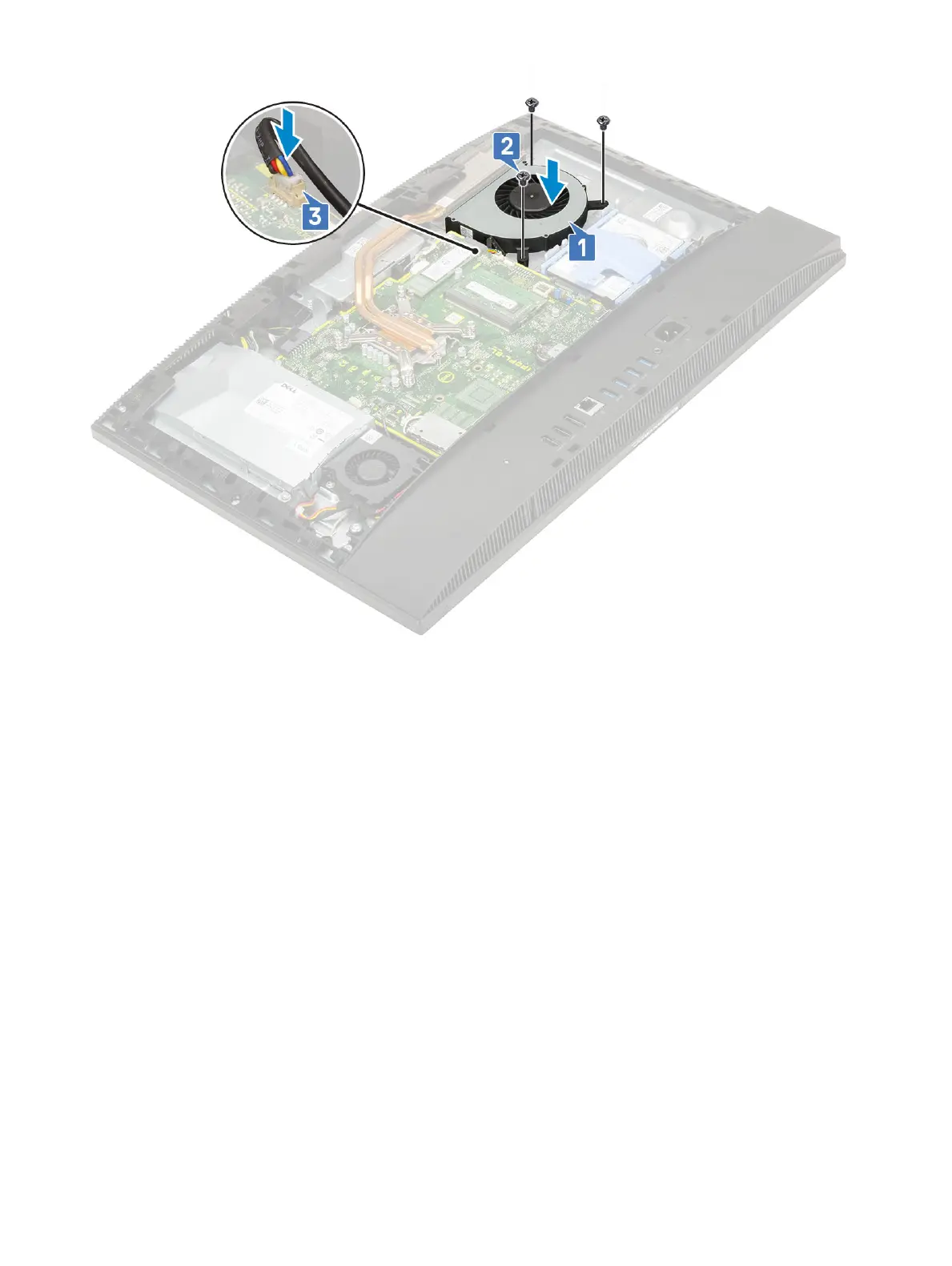

4 Install the following components:
a System board shield
b Back cover
c Stand
5 Follow the procedure in After working inside your computer.
Pop-Up Camera
Removing the pop-up camera
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield
3 To remove the camera assembly:
a Remove the two screws (M3) that secure the camera assembly cover to the middle frame [1].
b Lift the camera assembly cover away from the middle frame [2].
c Disconnect the camera cable from the system board and unroute the camera cable from the routing channel [3].
d Remove the two screws (M3) that secure the pop-up camera assembly to the middle frame [4].
e Slide and remove the pop-up camera assembly o the middle frame [5].
Removing and Installing components
41
