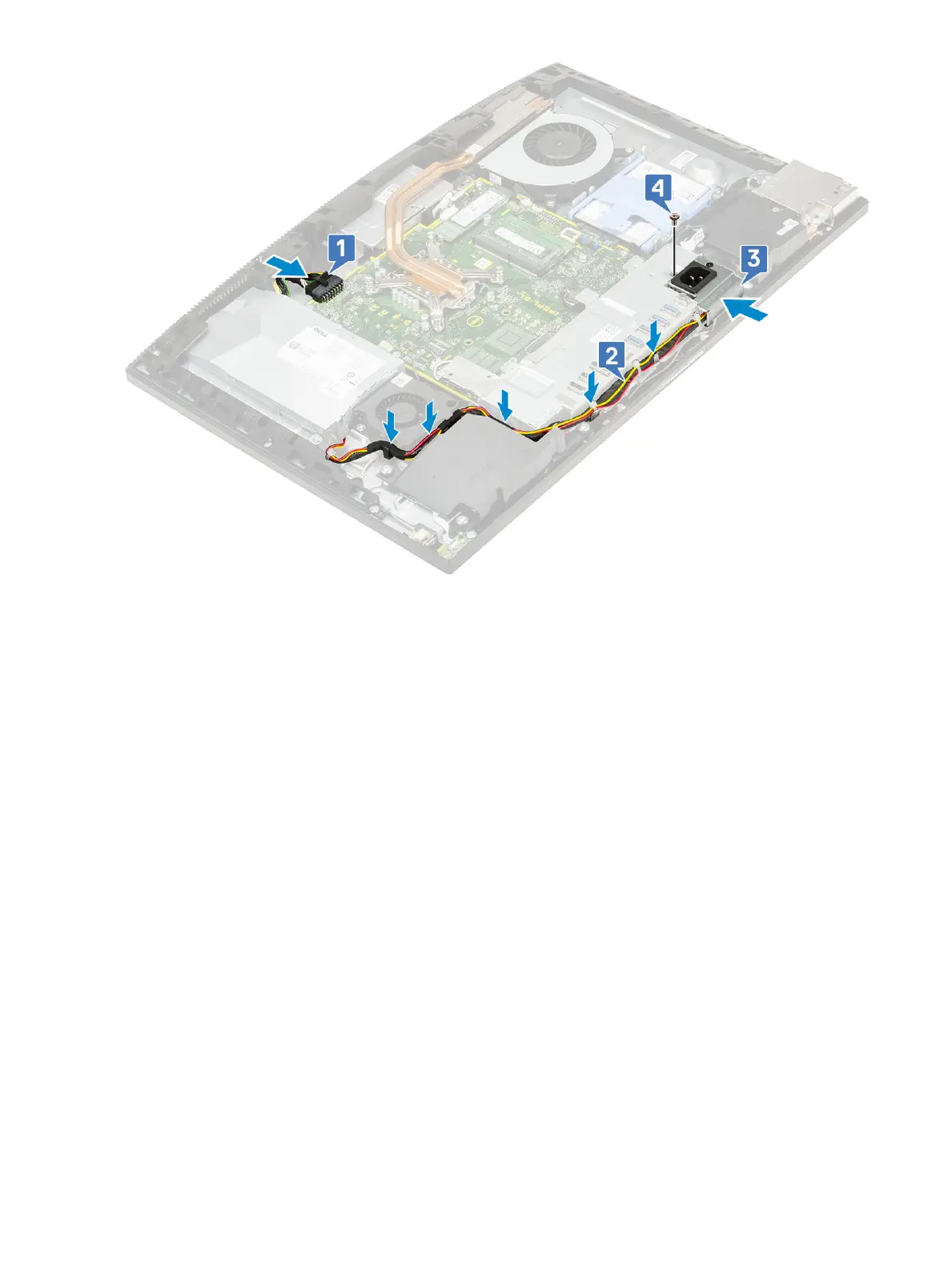

3 Install the following components:
a Base cover
b System board shield
c Back cover
d Stand
4 Follow the procedure in After working inside your computer.
Power supply unit fan - PSU fan
Removing the power supply unit fan -PSU fan
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield
d Base cover
3 To remove the PSU fan:
a Unroute the power supply cables from the retention clips in the PSU fan.
b Disconnect the PSU fan cable form the socket on the system board [1].
c Remove two (M3x5) screws that secure the PSU fan to the display assembly base [2].
d Lift the PSU fan away from the chassis [3].
Removing and Installing components
59
