Installing the display panel

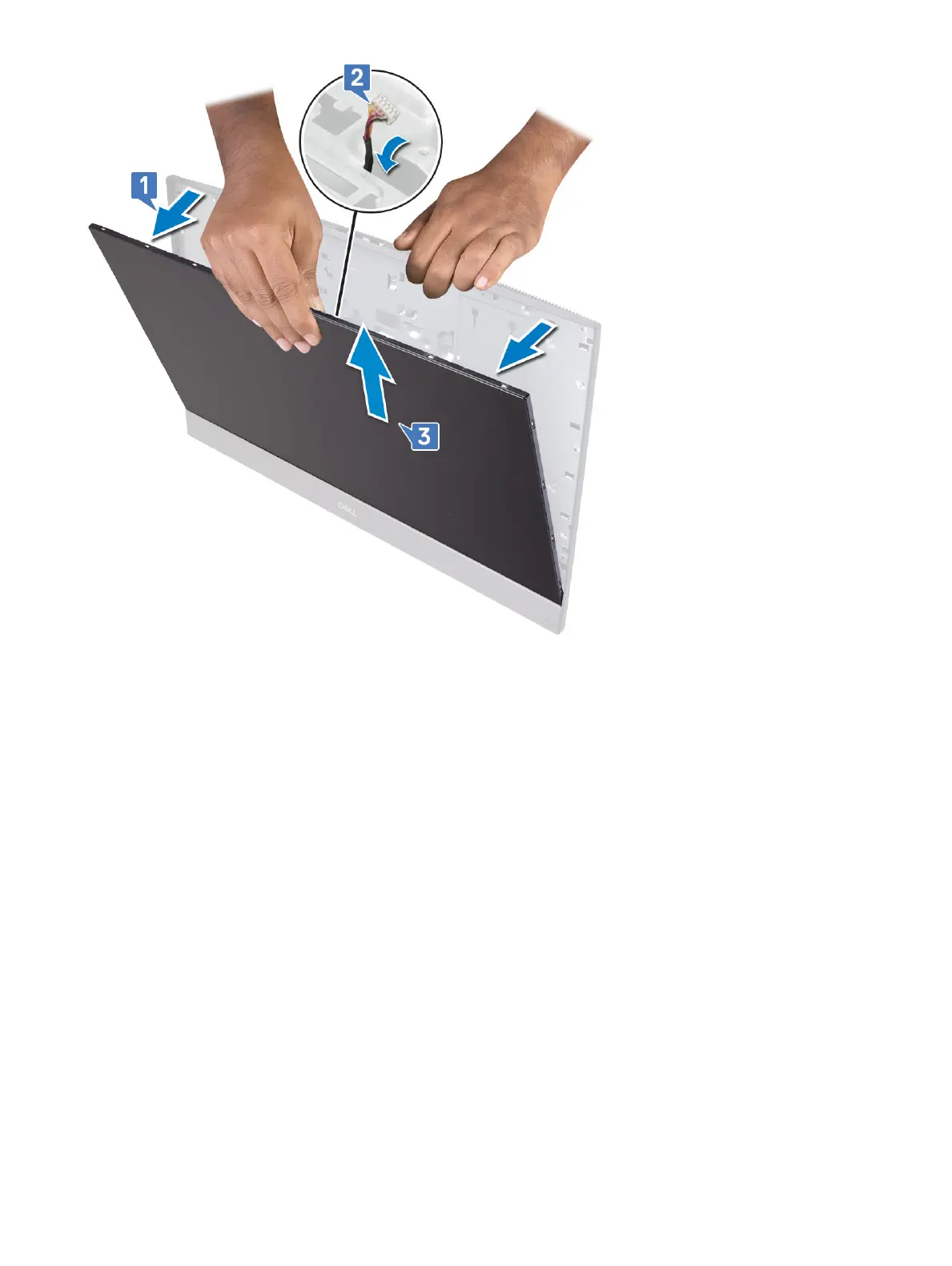

1 Place the display assembly base in its upright position, and slide the display panel into the slot between the middle frame and the
display assembly base [1].
2 Push the display backlight cable through the slots on the display assembly base [2].
3 Push the display panel towards the display assembly base, closing the gap between the display panel and the middle frame [3].
Removing and Installing components
87
