i PSU
j PSU fan

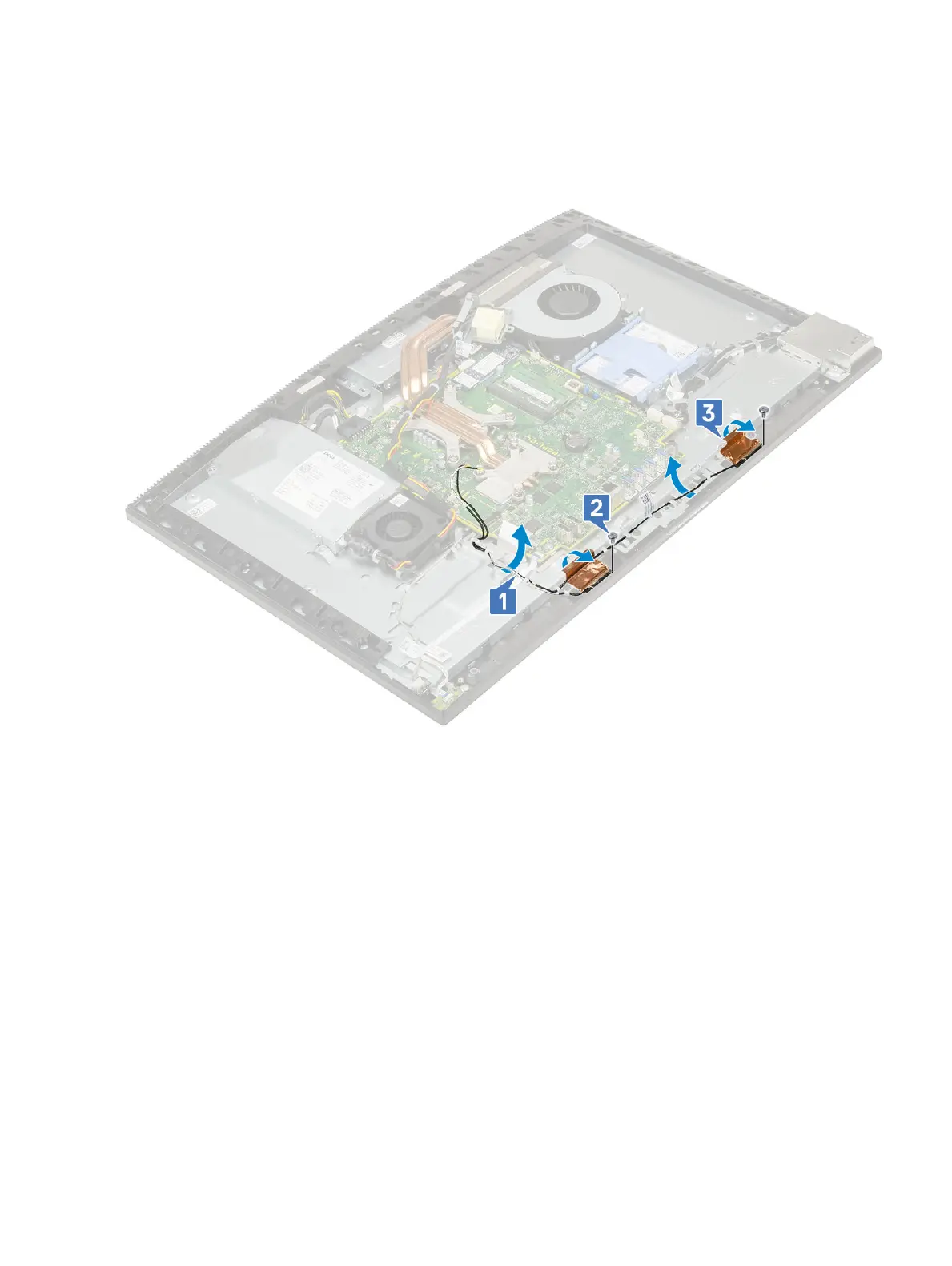

3 To remove the antenna:
a Remove the antenna cables from the routing guides on the display assembly base [1].
b Remove the two screws (M2x2.5) that secure the antenna modules (2) to the middle frame [2].
c Carefully peel the tape that secures the antenna cables (2) to the middle frame [3].
d Release the antenna modules (2) from the tabs and lift the antenna modules o the middle frame.
Installing the antennas
1 To replace the antenna modules:
a Align the antenna modules (2) with the slots on the middle frame.
b Adhere the tape that secures the antenna cables (2) to the middle frame [1].
c Replace the two screws (M2x2.5) that secure the antenna modules (2) to the middle frame [2].
d Route the antenna cables through the routing guides on the display assembly base [3].
84
Removing and Installing components
