Dell OptiPlex 7460 - Processor and Heat Sink Procedures

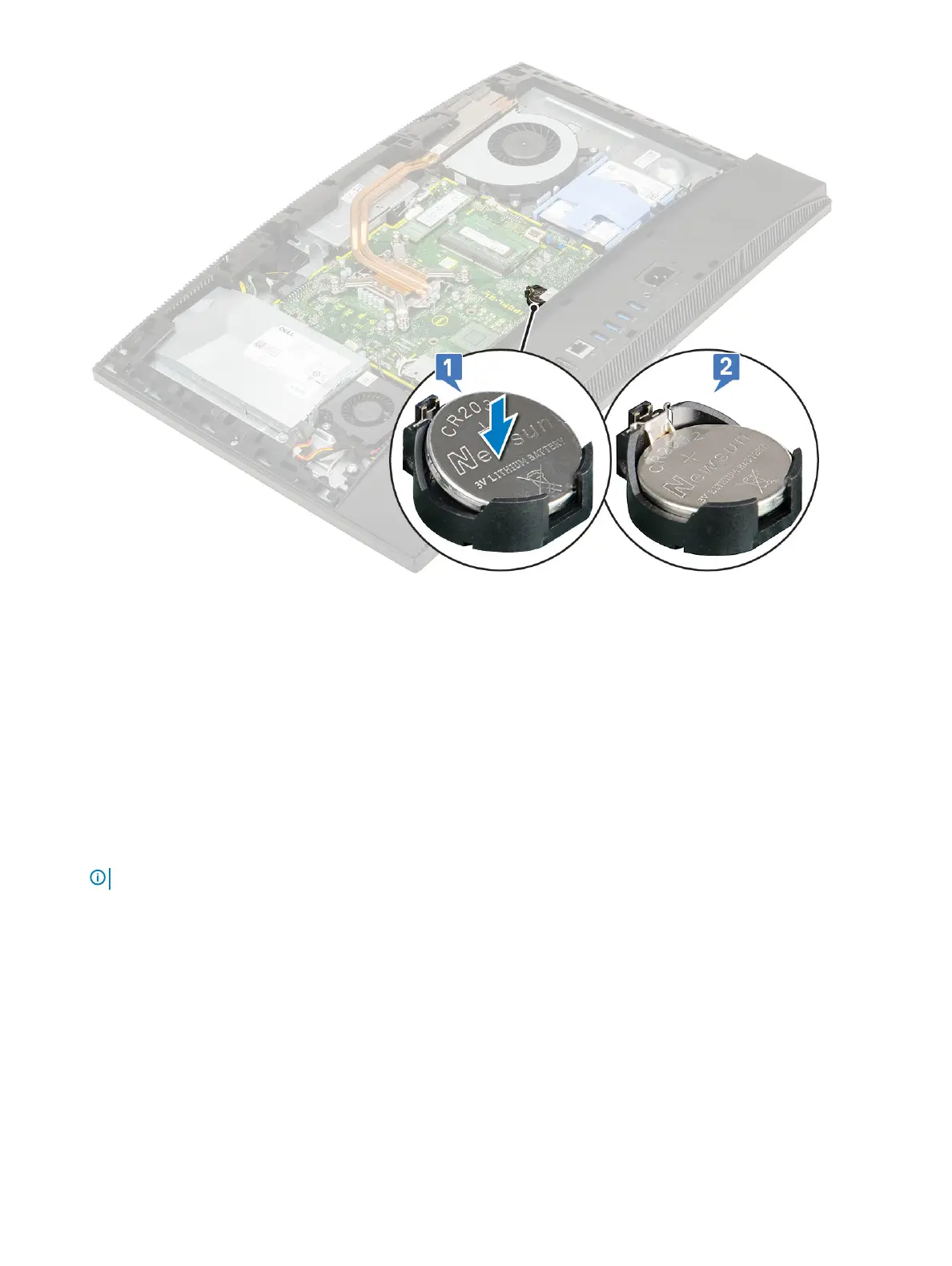

a System board shield
b Back cover
c Stand
4 Follow the procedure in After working inside your computer.
Heat sink
The following topics lists heat sink removing and installing steps for unied memory architecture (UMA) and discrete graphics processing
unit (dGPU).
Removing the heat sink - UMA
1
NOTE
: Perform the following steps to remove heat sink for unied memory architecture (UMA)graphics.
Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield
d System fan
3 In the reverse order (as indicated on the heat sink), loosen the ve captive screws that secure the heat sink to the system board and
display assembly base [1].
4 Lift the heat sink o the system board and display assembly base [2].
46
Removing and Installing components
