Installing the input and output board
1 To replace the I/O board:

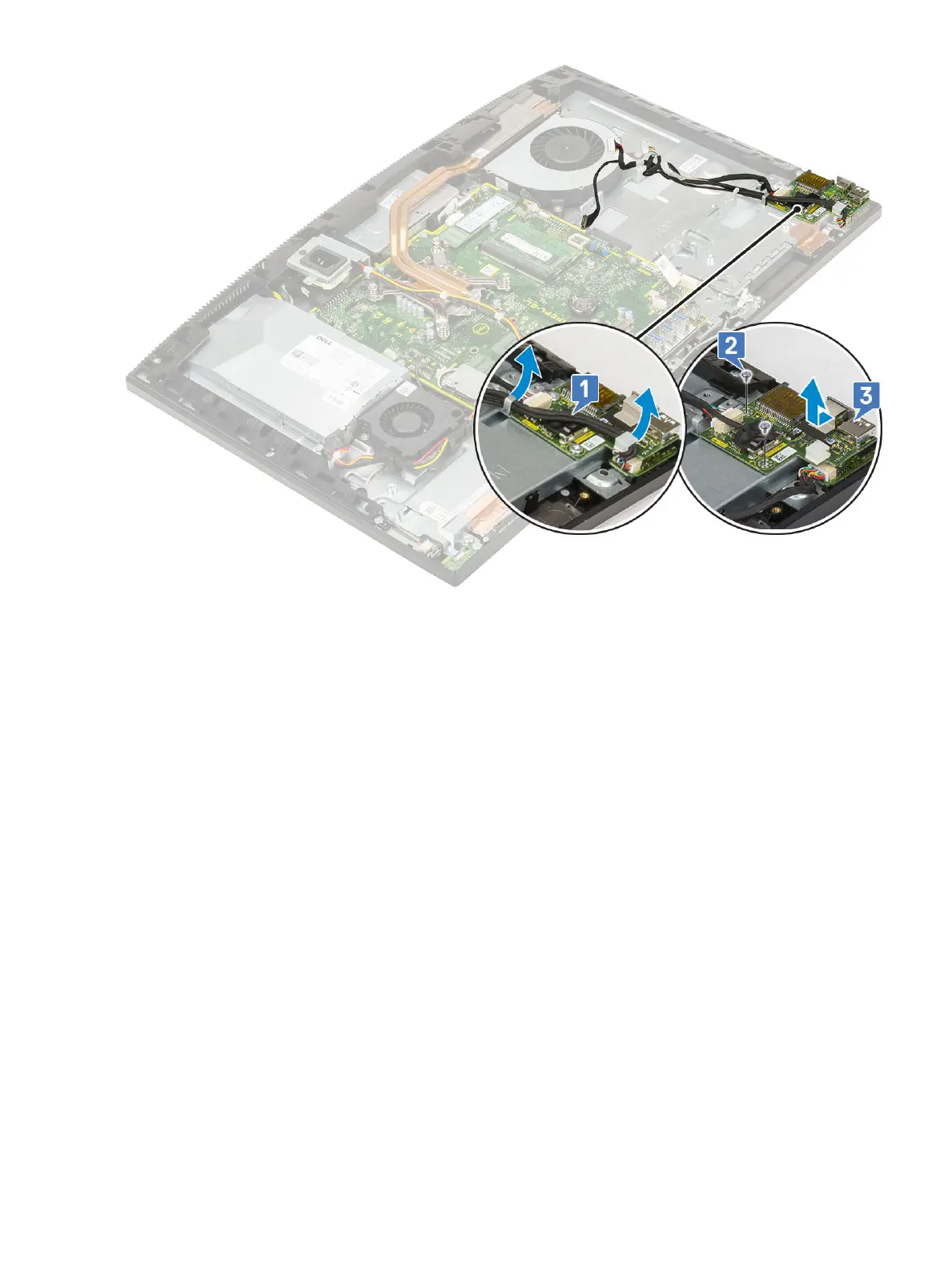

a Place and align and place the Input and Output board (I/O) board onto the display assembly base [1].
b Replace the two screws (M3x5) that secure the I/O board to the display assembly base [2].
c Route the headset port cable through the routing guide on the I/O board [3].
Removing and Installing components
