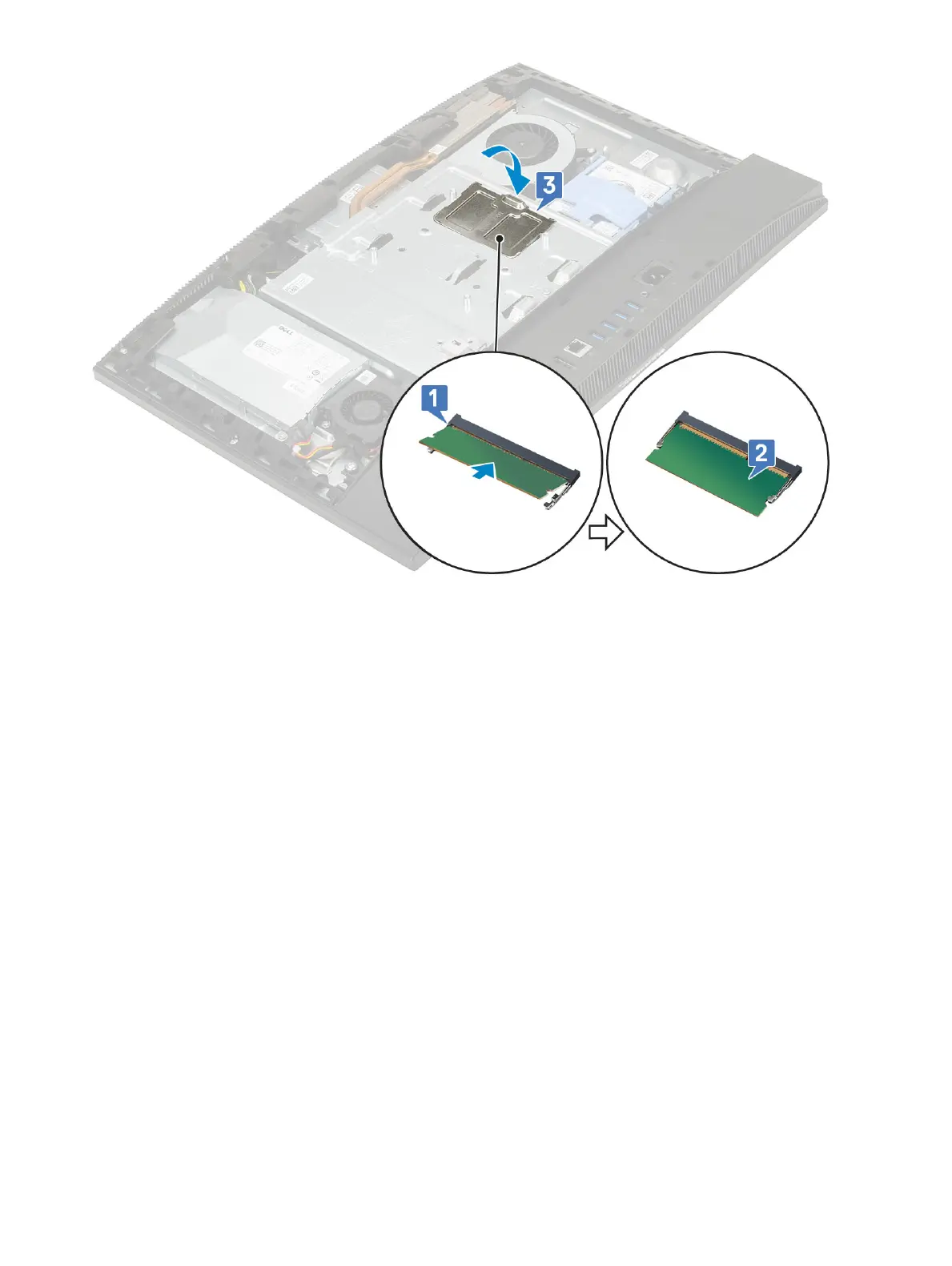

3 Align the tabs on the DIMM door with the slots on the system board shield and snap it into place.
4 Install the following components:
a Back cover
b Stand
5 Follow the procedure in After working inside your computer.
System board shield
Removing the system board shield
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
3 Remove the ve (M3x5) screws that secure the system board shield to the display assembly base [1].
4 Lift the system board shield o the display assembly base [2].
