c System board shield
d Base cover
e I/O bracket

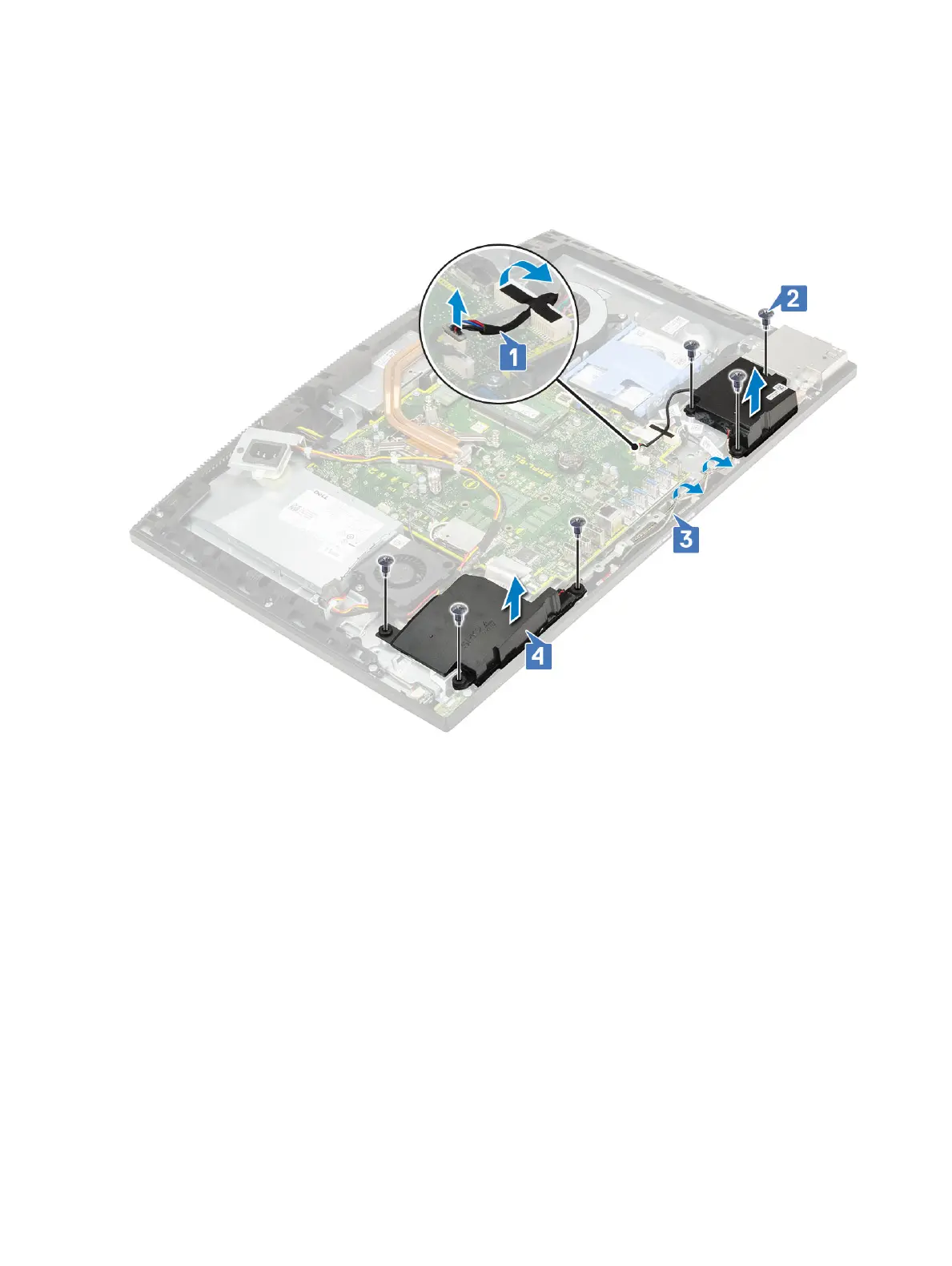

3 To disconnect the speakers:
a Disconnect the speaker cable from the system board [1].
b Remove the six screws (M3x4+7.1) that secure the speakers to the display-assembly base [2].
c Unroute the speaker cable from the routing guide on the display assembly base.
d Lift the speakers and the speaker cable o the display assembly base [3].
Installing the speakers
1 To replace the speakers:
a Place the speakers on the display assembly base and align the screw slots on the speakers with the screw slots on the display
assembly base [1].
b Replace the six screws (M3x4+7.1) that secure the speakers to the display assembly base [2].
c Route the speaker cable through the routing guides on the display assembly base.
d Connect the speaker cable to the socket on the system board [3].
72
Removing and Installing components
