2 Install the following components:
a PSU
b Speakers
c I/O bracket
d Base cover
e System board shield
f Back cover
g Stand
3 Follow the procedure in After working inside your computer.
Input and Output board
Removing the Input and Output board
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield
d Base cover
e I/O bracket
f Speakers
g Hard drive
3 To remove the Input and Output board (I/O) board shield:

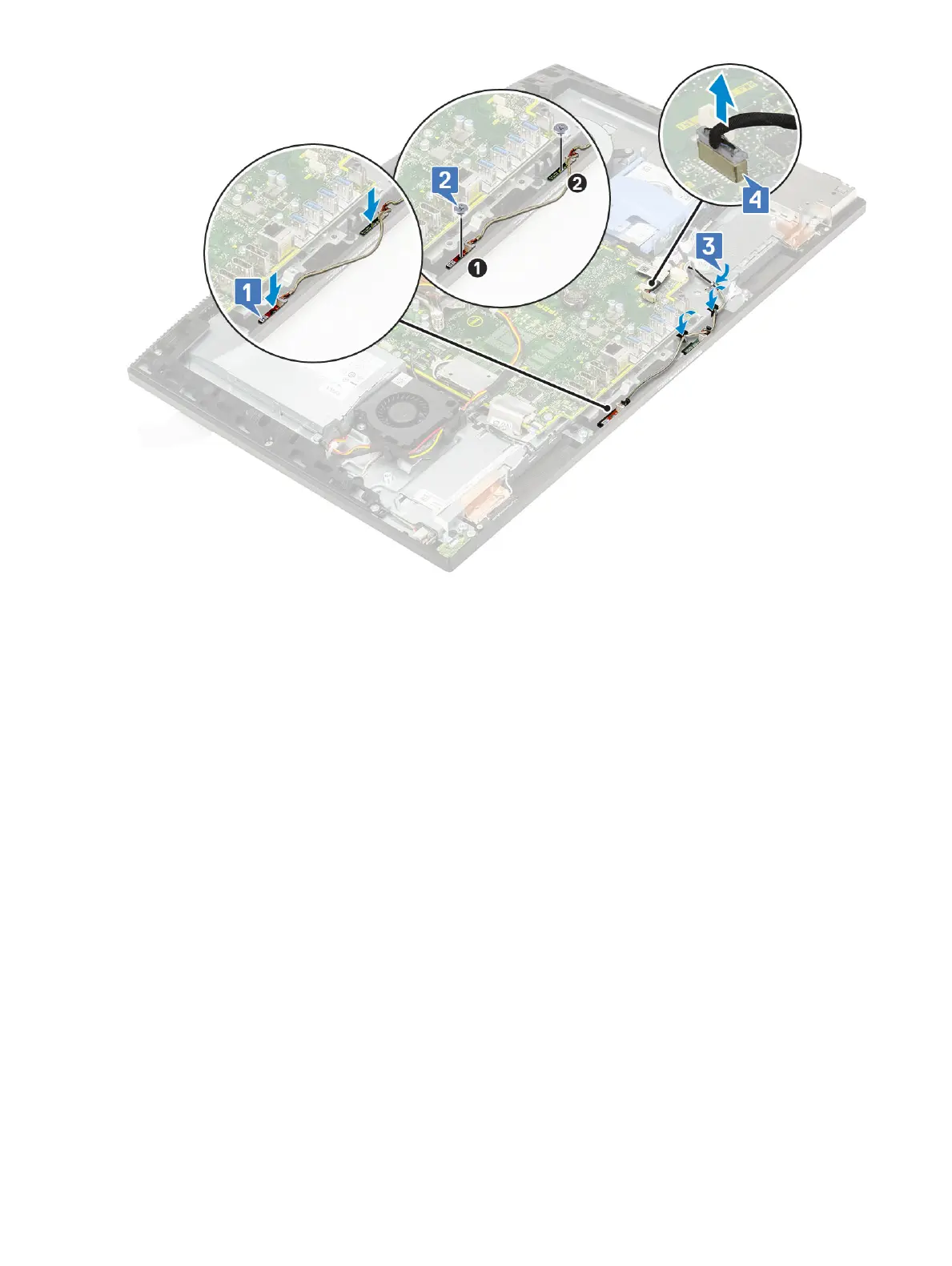

a Disconnect the I/O board cable, I/O board power cable, and headset port cable from the system board [1].
Removing and Installing components
77
