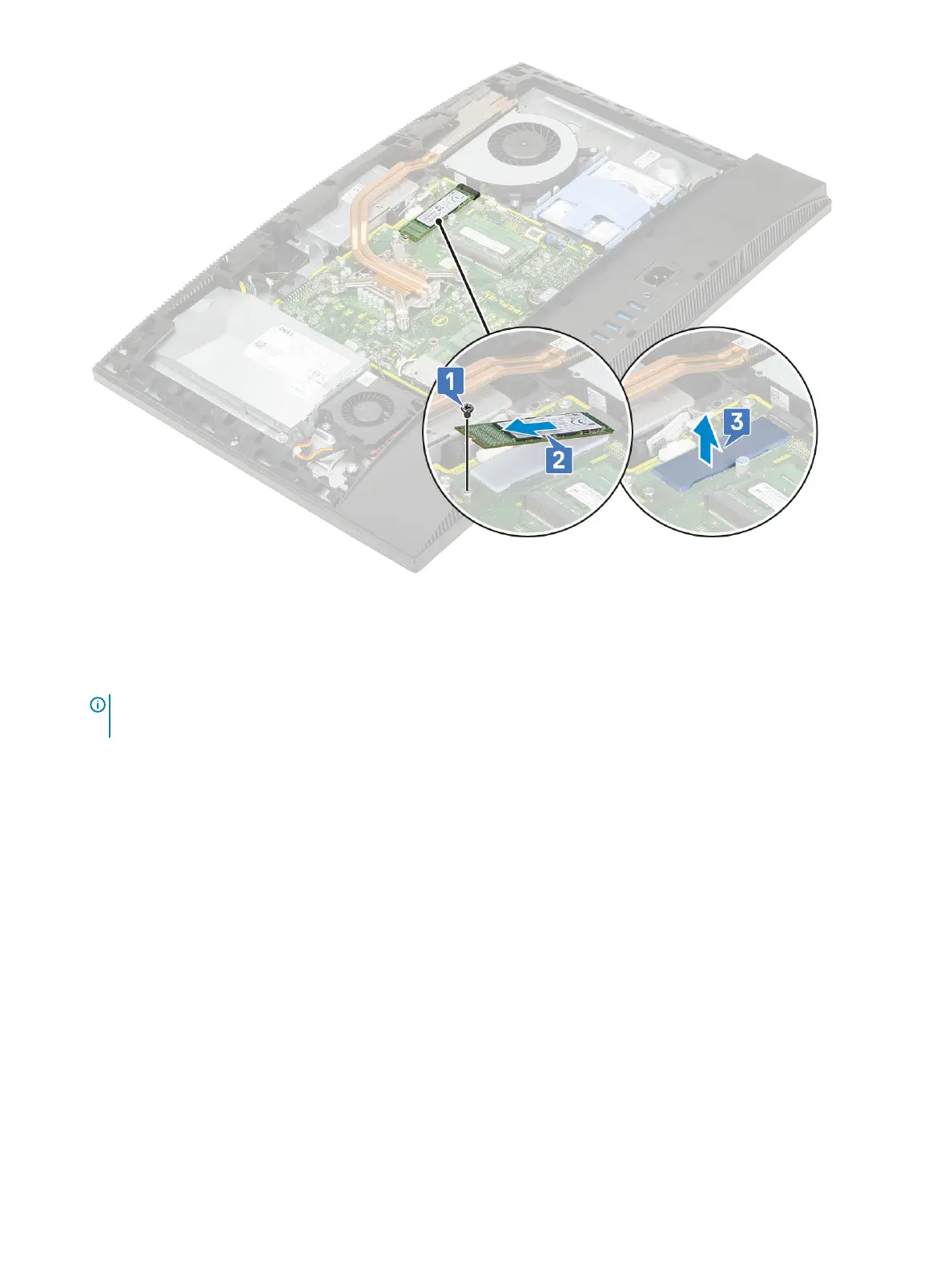

Installing the SSD card
1 Replace the thermal pad on the rectangular outline marked on the system board [1].
NOTE
: M.2 PCIe SSD with capacity over 512G(512G/1TB/2TB) must be installed with a thermal pad. M.2 SATA SSD and M.
2 PCIe SSD with 128G and 256G does not require a thermal pad.
2 Insert the SSD card into the card slot on the system board [2].
3 Replace the screw (M2) that secures the SSD card to the system board [3].
